JSMSEMI

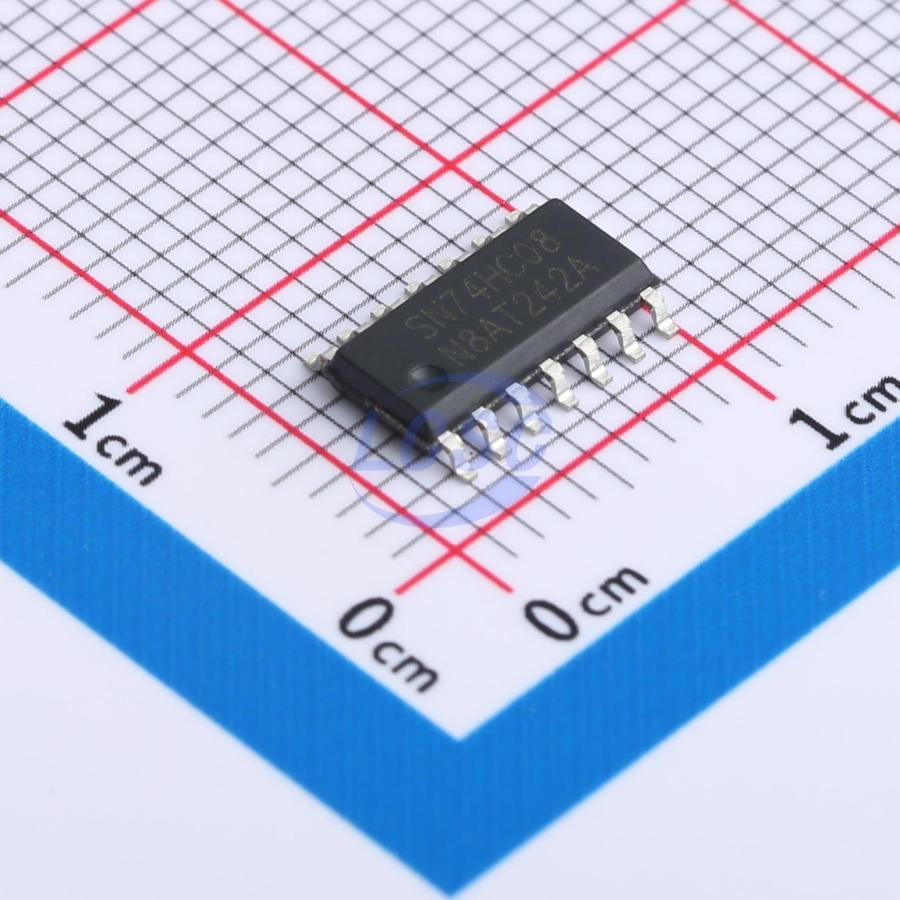

SN74HC08DR-JSM

AND Gate IC 4 Channel SOP-14

SOP-14ROHS CompliantActive

High-speed CMOS, Quad 2-input AND gates

Manufacturer: JSMSEMI
Manufacturer part #: SN74HC08DR-JSM
Store part #: C18221464
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,935 in stock

#C18221464

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹18.38	₹91.90
50+	₹14.62	₹731.00
150+	₹12.74	₹1,911.00
500+	₹11.34	₹5,670.00
2,500+	₹10.20	₹25,500.00
5,000+	₹9.64	₹48,200.00

Quantity (min 5, multiples of 5)

5 × ₹18.38

₹91.90

excl. GST

₹108.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SN74HC08DR-JSM

₹91.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74HC Series
Voltage - Supply: 2V~6V
Output Logic Level - Low: 330mV
Propagation Delay: 18ns@4.5V,50pF
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Output Logic Level - High: 5.9V;5.34V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 5.2mA
Number of Channels: 4;2
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.202 g

Overview

SN74HCO8DR-JSM is a high-speed CMOS circuit, pin-compatible with the low-power Schottky TTL (LSTTL) family. Compliant with JEDEC standard No. 7A, it implements a 2-input AND gate function.

Key features

Compatible with JEDEC Standard No. 8-1A
ESD Protection
HBM EIA/JESD22-A114-A exceeds 2000V
MM EIA/JESD22-A115-A exceeds 200V
Temperature Range: -40°C ~ +85°C
Package: DIP-14/SOP-14
