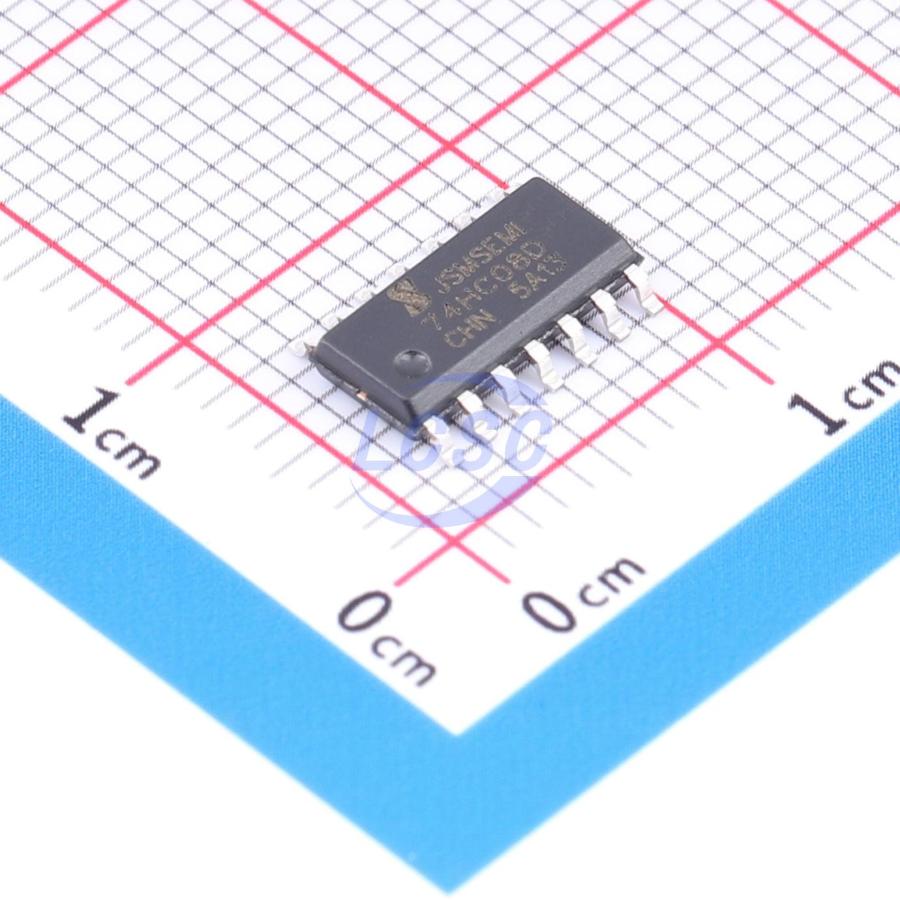

74HC08D,653-JSM
StandardCMOS 2V~6V 15ns 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC08D,653-JSM
- Store part #
- C53436306
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C53436306
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.78 | ₹73.90 |
| 50+ | ₹11.67 | ₹583.50 |
| 150+ | ₹10.11 | ₹1,516.50 |
| 500+ | ₹8.94 | ₹4,470.00 |
| 2,500+ | ₹8.02 | ₹20,050.00 |
| 5,000+ | ₹7.54 | ₹37,700.00 |
5 × ₹14.78
₹73.90
excl. GST
₹87.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC08D,653-JSM
₹73.90 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 15ns
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 2;4
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.531 g
Overview
74HC/HCT08 is a quad 2-input AND gate. Inputs include clamp diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: CMOS for 74HC08, TTL for 74HCT08
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC08D,118-JSM#C53114291JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 2,380 | ₹18.65 · 2,380 in stock | View |
 | SN74HC08DR-JSM#C18221464JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 1,950 | ₹18.38 · 1,950 in stock | View |
