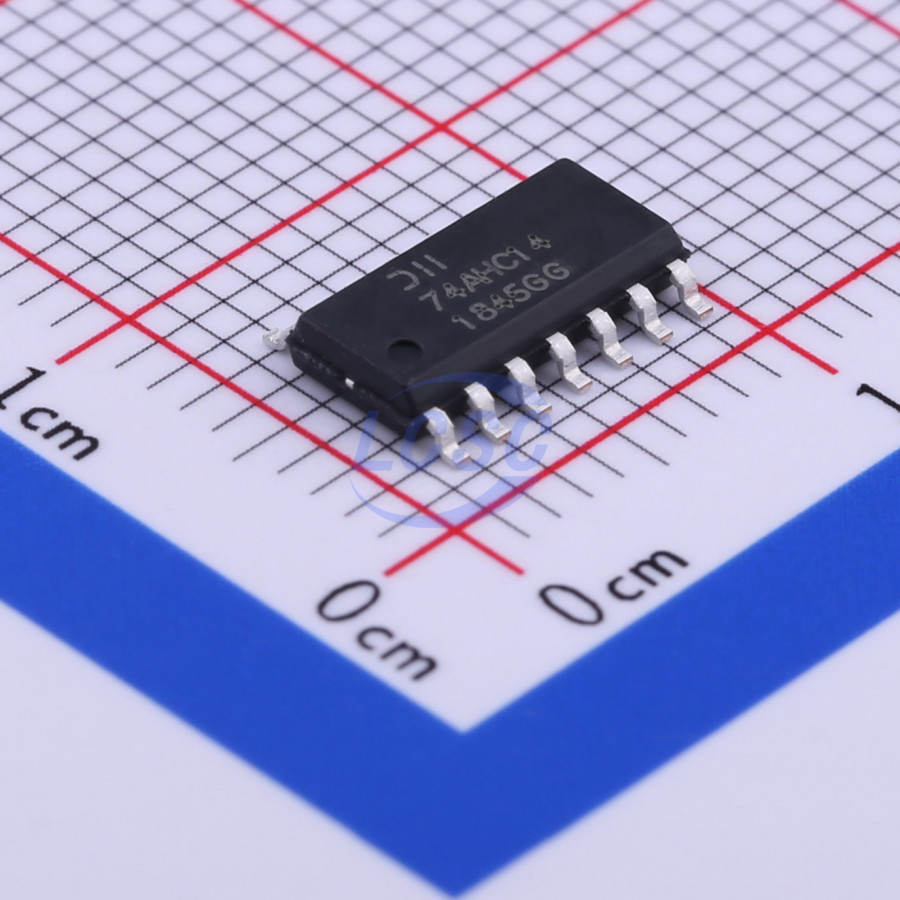

DIODES

74AHC14S14-13

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 40uA 6 SO-14 Gates and Inverters RoHS

SO-14ROHS CompliantActive

HEX INVERTER WITH SCHMITT TRIGGER INPUTS

Manufacturer: DIODES
Manufacturer part #: 74AHC14S14-13
Store part #: C128357
Package / case: SO-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,500 in stock

#C128357

Stock & price checked 17 h ago

Quantity	Unit price	Pack price
5+	₹24.82	₹124.10
50+	₹19.42	₹971.00
150+	₹17.12	₹2,568.00
500+	₹14.24	₹7,120.00
2,500+	₹12.95	₹32,375.00
5,000+	₹12.18	₹60,900.00

Quantity (min 5, multiples of 5)

5 × ₹24.82

₹124.10

excl. GST

₹146.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74AHC14S14-13

₹124.10 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 900mV~1.65V
Input Logic Level - High: 2.2V~3.85V
Output Logic Level - High: 3.7V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 8mA
Number of Channels: 6
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.316 g

Overview

The 74AHC14 provides provides six independent Schmitt trigger input inverters with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The gates perform the Boolean function: Y = A(overline)

Applications

General Purpose Logic
Wide array of products such as:
PCs, Networking, Notebooks, Netbooks
Computer Peripherals, Hard Drives, CD/DVD ROM
TV, DVD, DVR, Set Top Box

Key features

Wide Supply Voltage Range from 2.0V to 5.5V
Outputs Sink or Source 8mA at VCC = 4.5V
CMOS Low Power Consumption
Schmitt Trigger Action at All Inputs Typical hysteresis of 1V allows for transformation of slow changing input signals to sharply defined, fast transition output signals.
Inputs can be driven by 3.3V or 5.5V allowing for voltage translation applications.
ESD Protection Exceeds JESD 22
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II
Range of Package Options SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
