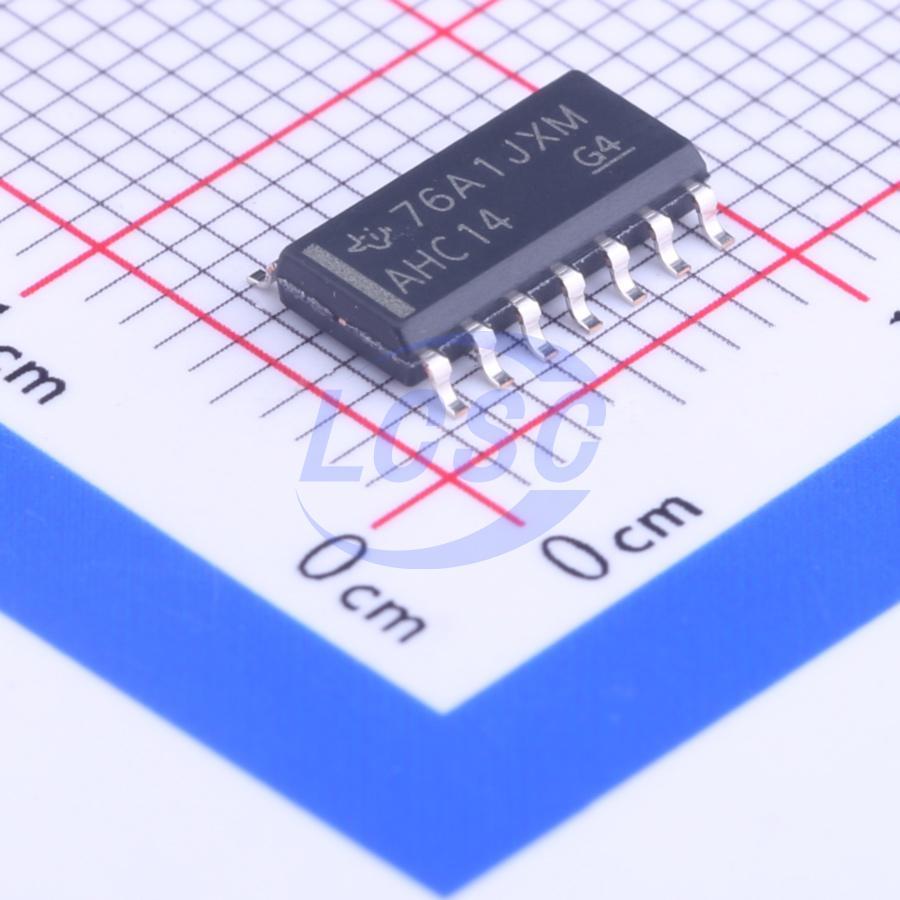

SN74AHC14DR
Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 2uA 6 SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Hex Schmitt-Trigger Inverters
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC14DR
- Store part #
- C6942
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32,760 in stock
#C6942
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.27 | ₹251.35 |
| 50+ | ₹39.77 | ₹1,988.50 |
| 150+ | ₹35.26 | ₹5,289.00 |
| 500+ | ₹29.64 | ₹14,820.00 |
| 2,500+ | ₹24.34 | ₹60,850.00 |
| 5,000+ | ₹22.85 | ₹1,14,250.00 |
5 × ₹50.27
₹251.35
excl. GST
₹296.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHC14DR
₹251.35 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 10.6ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 900mV~1.65V
- Input Logic Level - High
- 2.2V~3.85V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The 'AHC14 devices contain six independent inverters. These devices perform the Boolean function Y = A(overline). Each circuit functions as an independent inverter, but because of the Schmitt action, the inverters have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals.
Key features
- Operating Range 2 V to 5.5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000 V Human-Body Model (A114-A)
- 200 V Machine Model (A115-A)
- 1000 V Charged-Device Model (C191)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC14D#C2859786TI · SOIC-14 | TI | SOIC-14 | 68 | ₹225.21 · 68 in stock | View |
 | SN74AHC14QDRQ1#C2870589TI · SOIC-14 | TI | SOIC-14 | 116 | ₹52.89 · 116 in stock | View |
 | 74AHC14D,118#C5510Nexperia · SOIC-14 | Nexperia | SOIC-14 | 15,635 | ₹21.98 · 15,635 in stock | View |
 | 74AHC14S14-13#C128357DIODES · SO-14 | DIODES | SO-14 | 2,500 | ₹24.82 · 2,500 in stock | View |
 | SN74HCS04QDRQ1#C2862169TI · SOIC-14 | TI | SOIC-14 | 180 | ₹43.95 · 180 in stock | View |
