MDD(Microdiode Semiconductor)Datasheet (PDF)

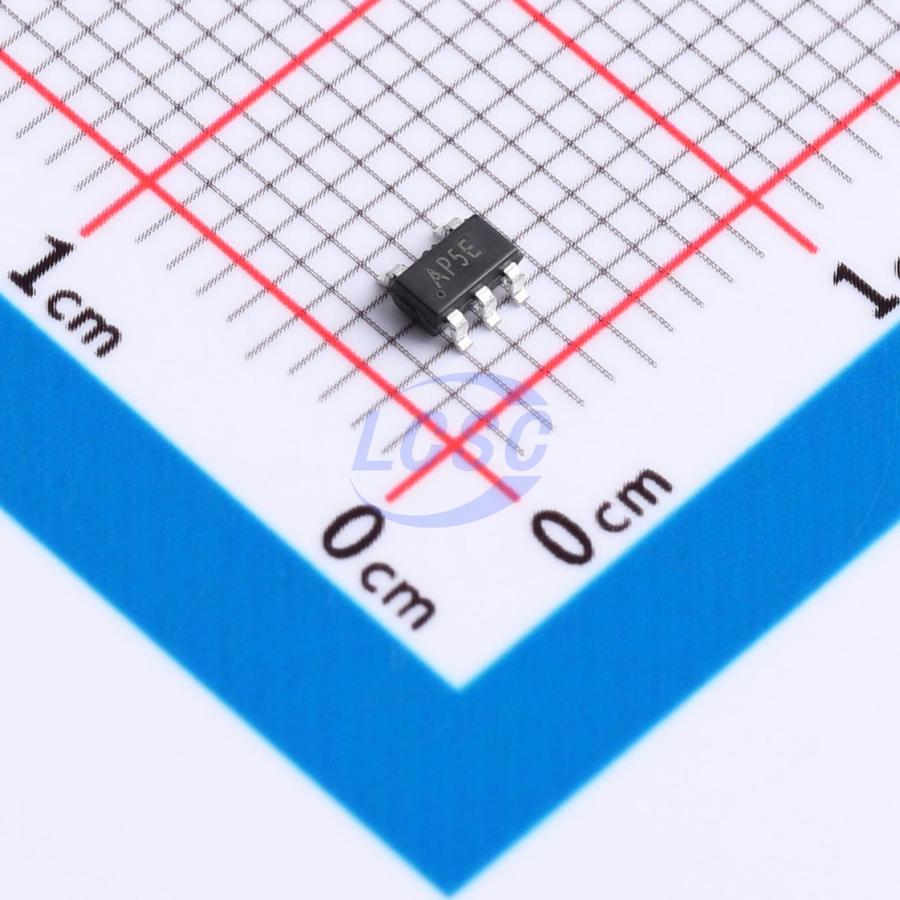

74AHC1G125GV
StandardCMOS 2V~5.5V 1 1 3.9ns@5V SOT-23-5L Buffers, Drivers, Receivers, Transceivers
SOT-23-5LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHC1G125GV
- Store part #
- C52140420
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,395 in stock
#C52140420
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹9.08 | ₹9.08 |
| 10+ | ₹7.16 | ₹71.60 |
| 30+ | ₹6.19 | ₹185.70 |
| 100+ | ₹5.48 | ₹548.00 |
| 500+ | ₹4.90 | ₹2,450.00 |
| 1,000+ | ₹4.60 | ₹4,600.00 |
1 × ₹9.08
₹9.08
excl. GST
₹10.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G125GV
₹9.08 for 1 + GST
Specifications
- Input type
- StandardCMOS
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.9ns@5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
74AHC1G125 and 74AHCT1G125 are single buffer/line drivers with 3-state outputs. The inputs are 5 V tolerant, enabling these devices to be used as level translators in mixed-voltage systems.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels: CMOS for 74AHC1G125; TTL for 74AHCT1G125
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G126GV#C52140416MDD(Microdiode Semiconductor) · SOT-23-5L | MDD(Microdiode Semiconductor) | SOT-23-5L | 11,582 | ₹13.53 · 11,582 in stock | View |
