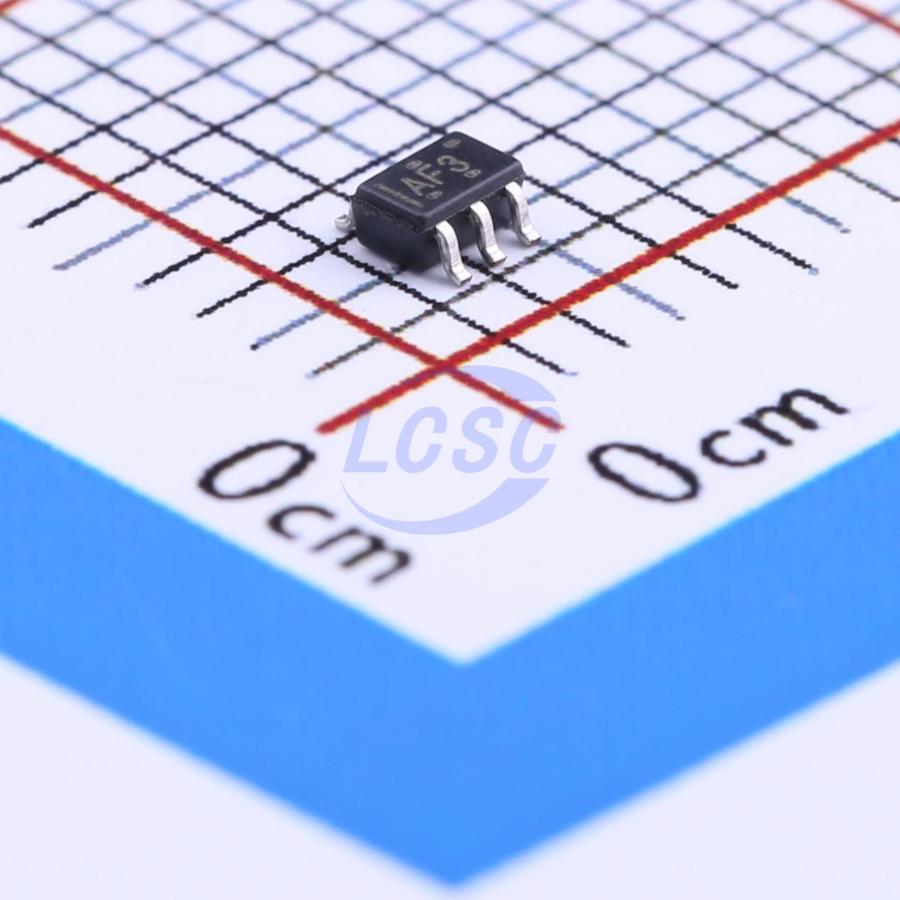

SN74AHC1G14DCKR

Schmitt trigger 2V~5.5V 10.6ns@5V,50pF 1uA 1 SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Single Schmitt-Trigger Inverter Gate

Manufacturer: TI
Manufacturer part #: SN74AHC1G14DCKR
Store part #: C66196
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,875 in stock

#C66196

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹10.95	₹54.75
50+	₹8.84	₹442.00
150+	₹7.78	₹1,167.00
500+	₹6.99	₹3,495.00
3,000+	₹5.79	₹17,370.00
6,000+	₹5.48	₹32,880.00

Quantity (min 5, multiples of 5)

5 × ₹10.95

₹54.75

excl. GST

₹64.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AHC1G14DCKR

₹54.75 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 10.6ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 900mV~1.65V
Input Logic Level - High: 2.2V~3.85V
Output Logic Level - High: 3.7V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

Operating Range 2 V to 5.5 V Maximum tpd of 10 ns at 5 V Low Power Consumption, 10-μA Max ICC ±8-mA Output Drive at 5 V Latch-Up Performance Exceeds 250 mA Per JESD 17 The SN74AHC1G14 device is a single inverter gate. The device performs the Boolean function Y = A̅. The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.
