NexperiaDatasheet (PDF)

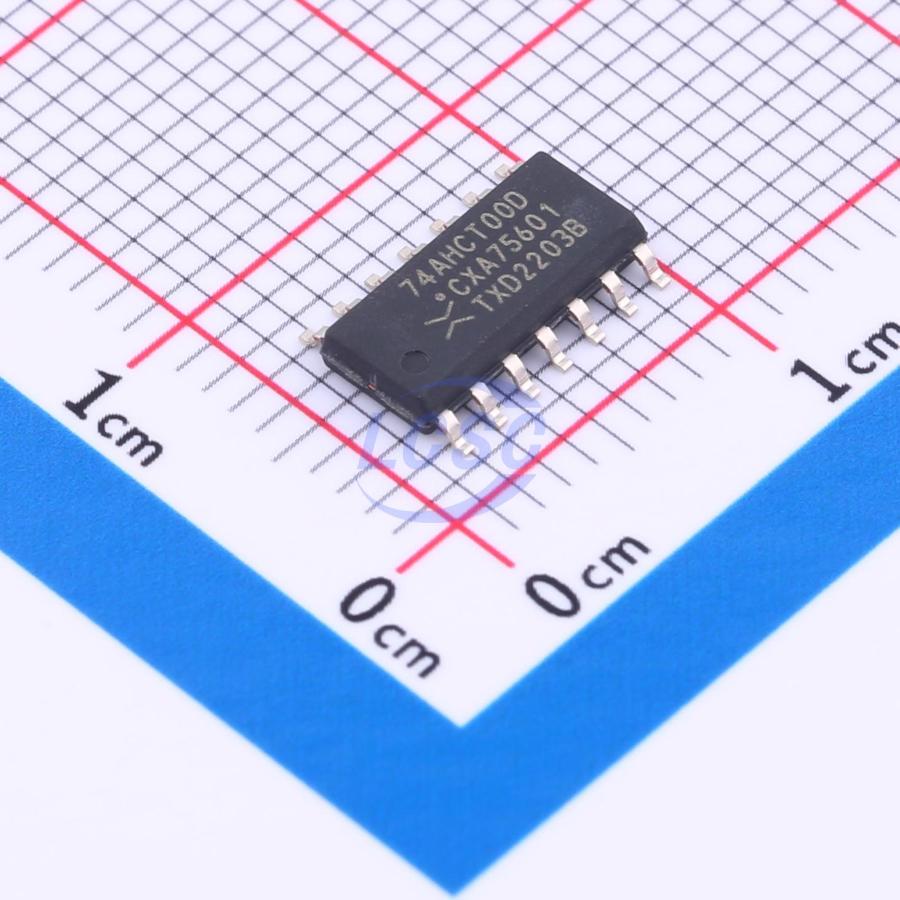

74AHCT00D,118
4.5V~5.5V 7.9ns@5V,50pF 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS3 CompliantActive
Quad 2-input NAND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT00D,118
- Store part #
- C554462
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,495 in stock
#C554462
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.26 | ₹141.30 |
| 50+ | ₹24.65 | ₹1,232.50 |
| 150+ | ₹23.10 | ₹3,465.00 |
| 500+ | ₹21.17 | ₹10,585.00 |
| 2,500+ | ₹20.31 | ₹50,775.00 |
| 5,000+ | ₹19.79 | ₹98,950.00 |
5 × ₹28.26
₹141.30
excl. GST
₹166.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHCT00D,118
₹141.30 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS;Schmitt trigger
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The 74AHC00; 74AHCT00 are quad 2-input NAND gates. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level shifting in mixed-voltage environments
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Input levels: For 74AHC00: CMOS level For 74AHCT00: TTL level
- Balanced propagation delays
- All inputs have Schmitt-trigger actions
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
