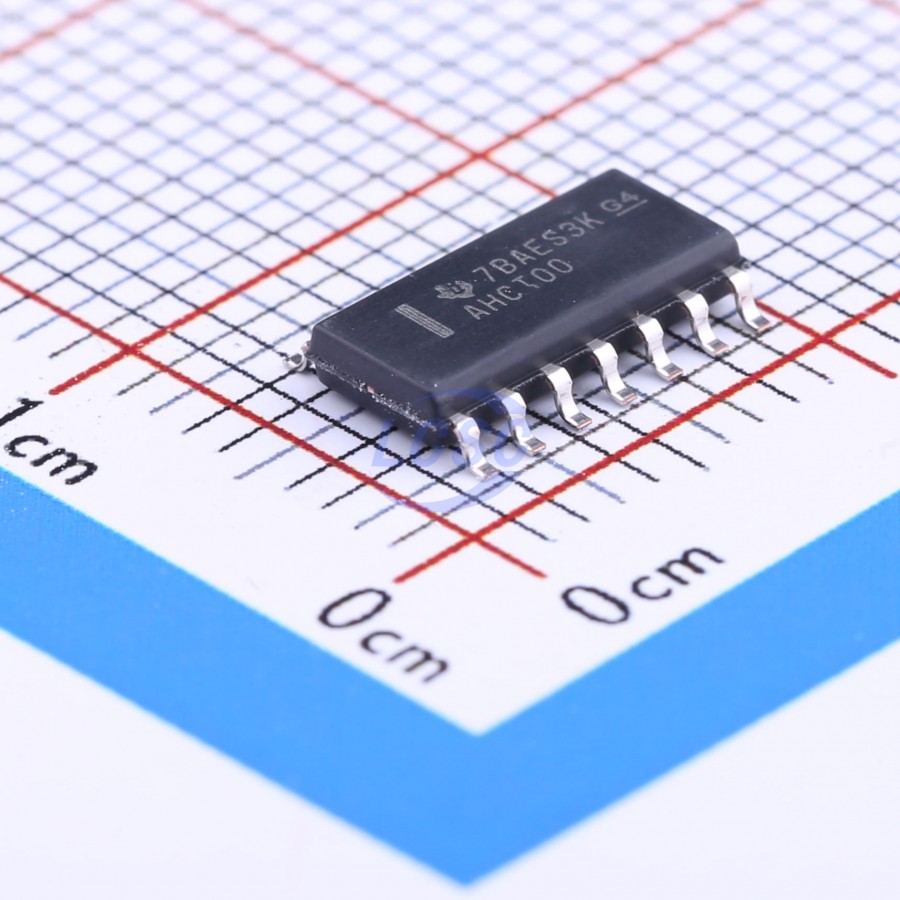

SN74AHCT00DR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT00DR
- Store part #
- C155451
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,095 in stock
#C155451
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.05 | ₹180.25 |
| 50+ | ₹28.92 | ₹1,446.00 |
| 150+ | ₹25.44 | ₹3,816.00 |
| 500+ | ₹22.35 | ₹11,175.00 |
| 2,500+ | ₹21.49 | ₹53,725.00 |
| 5,000+ | ₹20.97 | ₹1,04,850.00 |
5 × ₹36.05
₹180.25
excl. GST
₹212.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74AHCT00DR
₹180.25 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
The ’AHCT00 devices perform the Boolean function Y = (AB)(overline) or Y = A(overline) + B(overline) in positive logic.
Key features
- TTL-compatible inputs
- Latch-up performance exceeds 250mA, compliant with JESD 17
- Maximum ratings: supply voltage -0.5V~7V, input voltage -0.5V~7V, output voltage -0.5V~(VCC+0.5V), input clamp current -20mA, output clamp current ±20mA, continuous output current ±25mA, continuous current through VCC or GND ±50mA, storage temperature range -65℃~150℃
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, DGV package 127℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W, RGY package 47℃/W
- All unused inputs must be connected to VCC or GND for proper device operation
- Parameter test input pulse characteristics: repetition frequency ≤1MHz, output impedance 50Ω, rise time ≤3ns, fall time ≤3ns, test load capacitance includes probe and fixture capacitance
