NexperiaDatasheet (PDF)

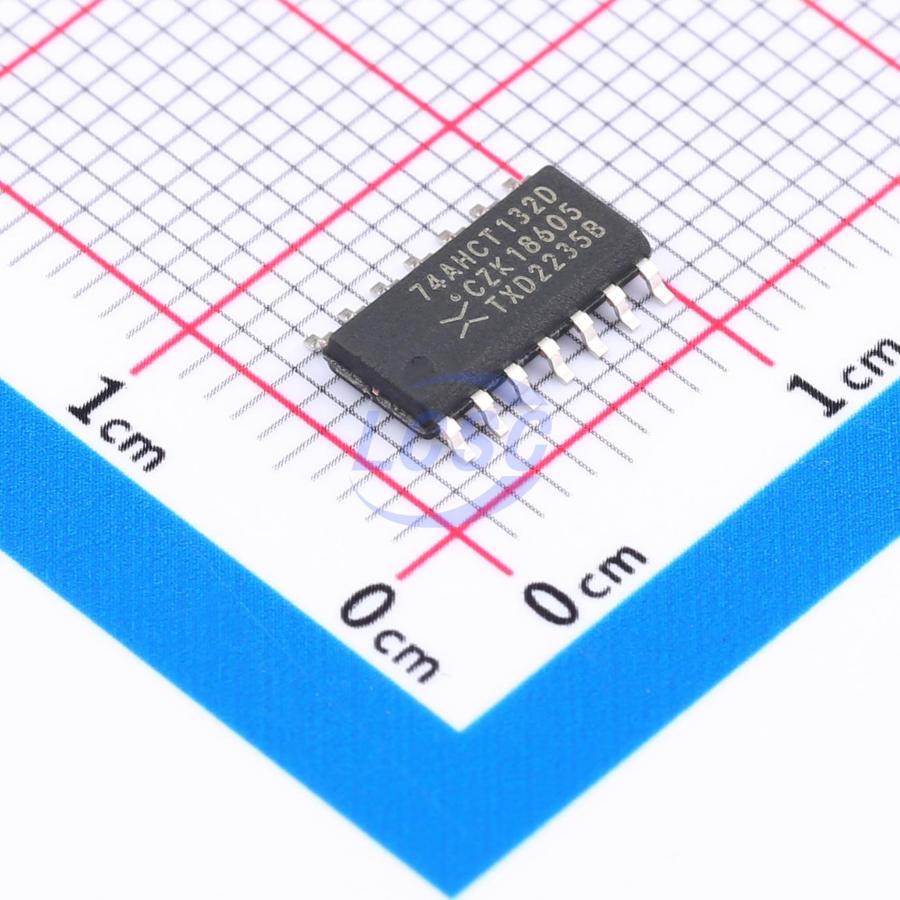

74AHCT132D,118
4.5V~5.5V 8ns@5V,50pF 2uA SO-14 Gates and Inverters RoHS
SO-14ROHS3 CompliantActive
Quad 2-input NAND Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT132D,118
- Store part #
- C554516
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C554516
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.72 | ₹168.60 |
| 50+ | ₹29.71 | ₹1,485.50 |
| 150+ | ₹27.99 | ₹4,198.50 |
| 500+ | ₹25.85 | ₹12,925.00 |
| 2,500+ | ₹24.89 | ₹62,225.00 |
| 5,000+ | ₹24.32 | ₹1,21,600.00 |
5 × ₹33.72
₹168.60
excl. GST
₹198.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHCT132D,118
₹168.60 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 0V~100mV;360mV
- Propagation Delay
- 8ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~600mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.9V~2.1V
- Output Logic Level - High
- 3.94V;4.4V~4.5V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The 74AHC132; 74AHCT132 is a quad 2-input NAND gate with Schmitt-trigger inputs. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Voltage conversion in mixed-voltage environments
- Logic level translation
- Signal processing circuits
- Digital logic gate applications
- Noise immunity in electronic equipment
- Low-power CMOS applications
- TTL-compatible input applications
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Input levels: For 74AHC132: CMOS level; For 74AHCT132: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT00D,118#C554462Nexperia · SOP-14 | Nexperia | SOP-14 | 3,495 | ₹28.26 · 3,495 in stock | View |
 | SN74AHCT132D#C2865814TI · SOIC-14 | TI | SOIC-14 | 46 | ₹45.54 · 46 in stock | View |
 | SN74AHCT00DR#C155451TI · SOIC-14 | TI | SOIC-14 | 4,095 | ₹36.05 · 4,095 in stock | View |
 | 74AHCT00S14-13#C842296DIODES · SO-14 | DIODES | SO-14 | 25 | ₹14.65 · 25 in stock | View |
 | SN74AHCT00QDRQ1#C2878712TI · SOIC-14 | TI | SOIC-14 | 199 | ₹97.20 · 199 in stock | View |
