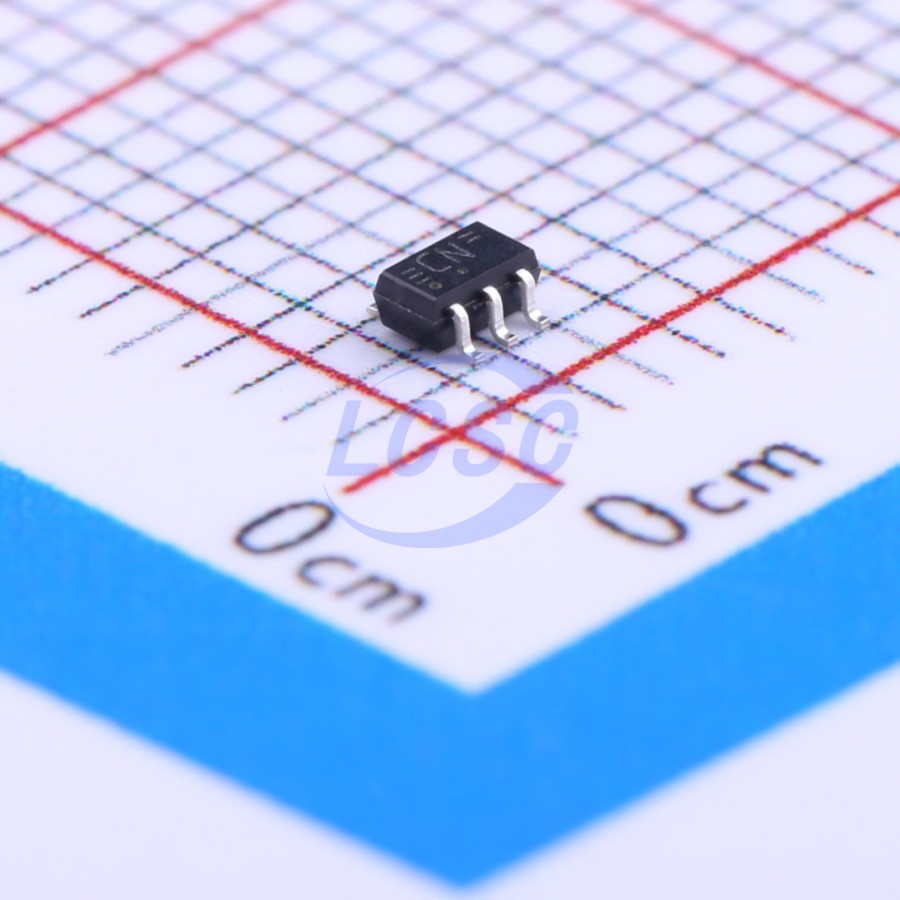

74AHCT1G126GW,125
4.5V~5.5V 1 1 4.7ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive
Bus buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT1G126GW,125
- Store part #
- C148200
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,475 in stock
#C148200
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.97 | ₹54.85 |
| 50+ | ₹8.78 | ₹439.00 |
| 150+ | ₹7.69 | ₹1,153.50 |
| 500+ | ₹6.87 | ₹3,435.00 |
| 3,000+ | ₹5.45 | ₹16,350.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
5 × ₹10.97
₹54.85
excl. GST
₹64.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G126GW,125
₹54.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G126; 74AHCT1G126 is a single buffer/line driver with 3-state output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level translation in mixed-voltage environments
- Buffer/line driver
- 3-state outputs
Key features
- Symmetrical output impedance
- Balanced propagation delays
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Input levels: For 74AHC1G126: CMOS level; For 74AHCT1G126: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G126SE-7#C150723DIODES · SOT-353 | DIODES | SOT-353 | 25 | ₹13.48 · 25 in stock | View |
 | 74AHCT1G125SE-7#C151417DIODES · SOT-353 | DIODES | SOT-353 | 545 | ₹17.68 · 545 in stock | View |
 | 74AHCT1G126GW#C52140433MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 2,559 | ₹12.93 · 2,559 in stock | View |
 | 74AHCT1G125GW,125#C12495Nexperia · SOT-353 | Nexperia | SOT-353 | 775 | ₹10.95 · 775 in stock | View |
| 74AHCT1G126QSE-7#C3754962DIODES · SOT-353 | DIODES | SOT-353 | 375 | ₹13.89 · 375 in stock | View | |
