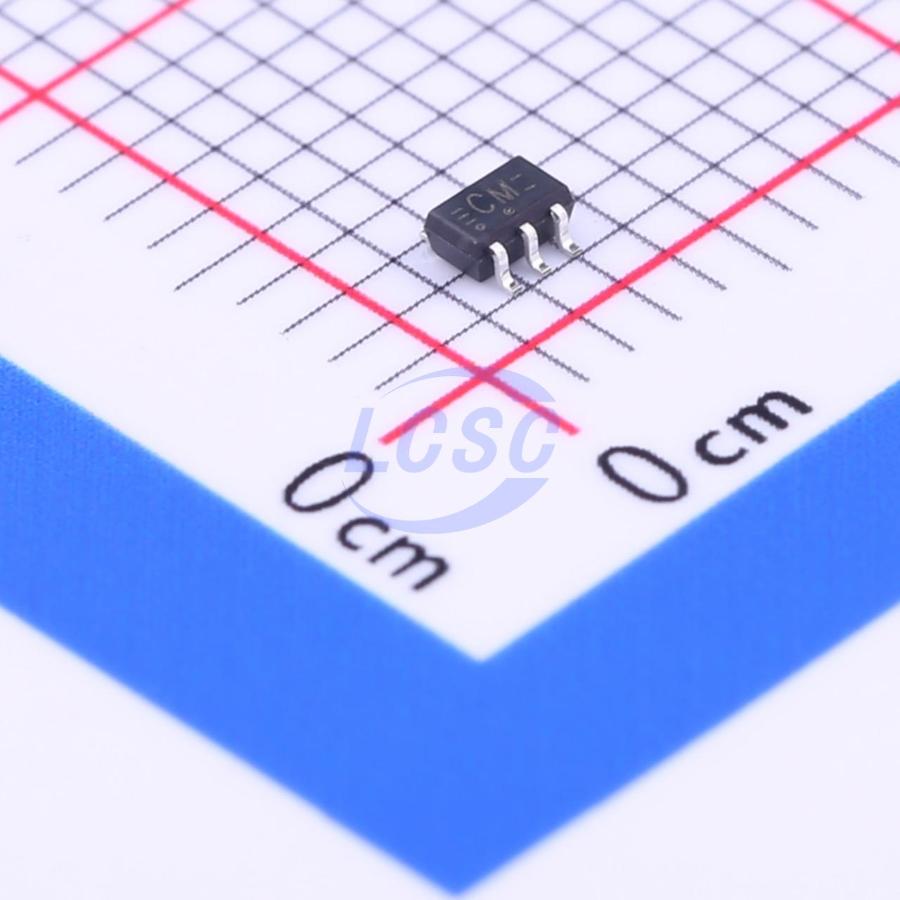

74AHCT1G125GW,125
4.5V~5.5V 1 1 4.8ns@5.5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive
Bus buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT1G125GW,125
- Store part #
- C12495
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
305 in stock
#C12495
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.17 | ₹55.85 |
| 50+ | ₹8.75 | ₹437.50 |
| 150+ | ₹7.54 | ₹1,131.00 |
| 500+ | ₹6.63 | ₹3,315.00 |
| 3,000+ | ₹5.91 | ₹17,730.00 |
| 6,000+ | ₹5.54 | ₹33,240.00 |
5 × ₹11.17
₹55.85
excl. GST
₹65.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G125GW,125
₹55.85 for 5 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 4.8ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G125/74AHCT1G125 is a single buffer/line driver with 3-state output. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- Symmetrical output impedance
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Balanced propagation delays
- Multiple package options
- Input levels: For 74AHC1G125: CMOS level For 74AHCT1G125: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
