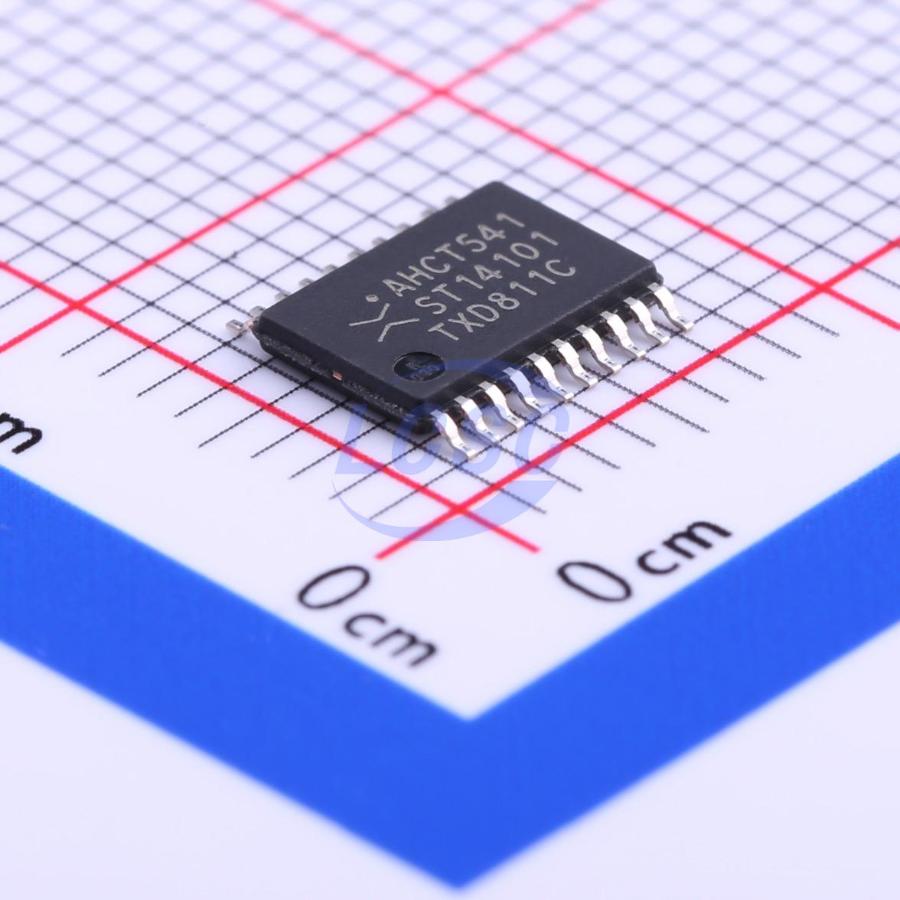

74AHCT541PW,118
Schmitt trigger 4.5V~5.5V 8 1 8.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT541PW,118
- Store part #
- C84548
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,960 in stock
#C84548
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.70 | ₹143.50 |
| 50+ | ₹22.45 | ₹1,122.50 |
| 150+ | ₹19.78 | ₹2,967.00 |
| 500+ | ₹16.44 | ₹8,220.00 |
| 2,500+ | ₹14.95 | ₹37,375.00 |
| 5,000+ | ₹14.06 | ₹70,300.00 |
5 × ₹28.70
₹143.50
excl. GST
₹169.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHCT541PW,118
₹143.50 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 80uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 8.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The 74AHC541; 74AHCT541 is an 8-bit buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the associated outputs to assume a high-impedance OFF-state. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 to 5.5 V
- Balanced propagation delays
- High noise immunity
- All inputs have a Schmitt-trigger action
- Overvoltage tolerant inputs to 5.5 V
- CMOS low power dissipation
- Input levels: For 74AHC541: CMOS level; For 74AHCT541: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT541PWR#C50989TI · TSSOP-20 | TI | TSSOP-20 | 90,410 | ₹49.64 · 90,410 in stock | View |
 | 74AHCT541PW#C54411090MDD(Microdiode Semiconductor) · TSSOP-20L | MDD(Microdiode Semiconductor) | TSSOP-20L | 1,315 | ₹34.05 · 1,315 in stock | View |
 | SN74AHCT540PWR#C7626TI · TSSOP-20 | TI | TSSOP-20 | 610 | ₹83.36 · 610 in stock | View |
 | 74VHCT240AFT(BE)#C7421306TOSHIBA · TSSOP20B | TOSHIBA | TSSOP20B | 75 | ₹72.50 · 75 in stock | View |
 | 74VHCT541AMTCX#C903433onsemi · TSSOP-20 | onsemi | TSSOP-20 | 45 | ₹139.63 · 45 in stock | View |
