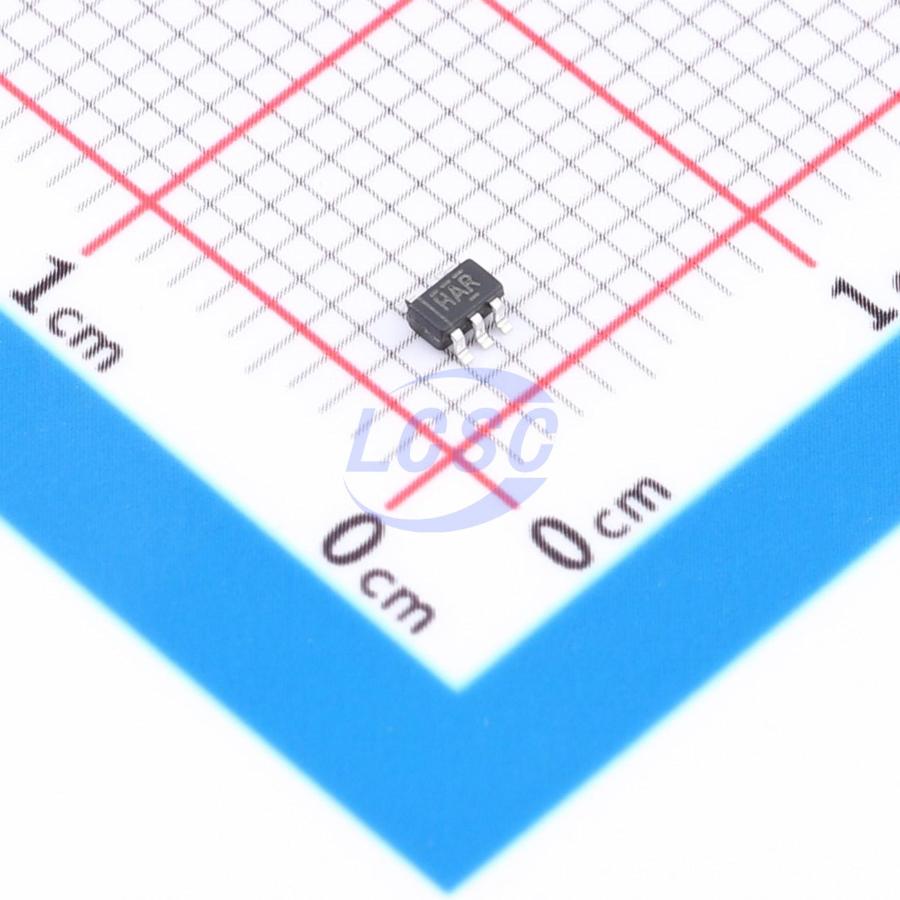

74AUP1G00GW-TP
500nA 800mV~3.6V 4.5ns@3.3V,30pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G00GW-TP
- Store part #
- C51886117
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,570 in stock
#C51886117
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.01 | ₹50.10 |
| 100+ | ₹3.94 | ₹394.00 |
| 300+ | ₹3.40 | ₹1,020.00 |
| 3,000+ | ₹2.99 | ₹8,970.00 |
| 6,000+ | ₹2.67 | ₹16,020.00 |
| 9,000+ | ₹2.50 | ₹22,500.00 |
10 × ₹5.01
₹50.10
excl. GST
₹59.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G00GW-TP
₹50.10 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 4.5ns@3.3V,30pF
- Output Logic Level - Low
- 310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74AUP1G00GW-TP is a 2-input NAND gate that implements the function Y = /（A·B） or Y = /A + /B in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs tolerant up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (maximum)
- ESD protection exceeds JESD 22
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
