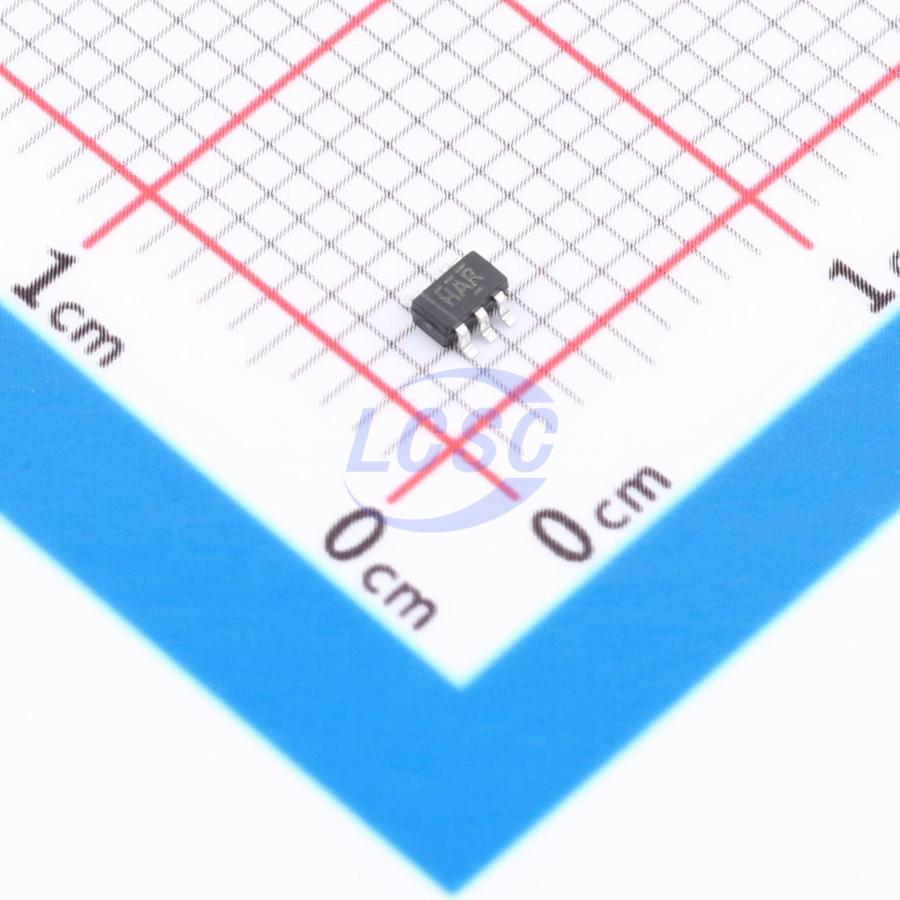

SN74AUP1G00DCKR-TP
500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G00DCKR-TP
- Store part #
- C51886118
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,930 in stock
#C51886118
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.32 | ₹53.20 |
| 100+ | ₹4.18 | ₹418.00 |
| 300+ | ₹3.61 | ₹1,083.00 |
| 3,000+ | ₹3.19 | ₹9,570.00 |
| 6,000+ | ₹2.84 | ₹17,040.00 |
| 9,000+ | ₹2.67 | ₹24,030.00 |
10 × ₹5.32
₹53.20
excl. GST
₹62.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G00DCKR-TP
₹53.20 for 10 + GST
Specifications
- Logic Family
- 74AUP
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 2.4ns@3.3V,5pF
- Output Logic Level - Low
- 440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The SN74AUP1G00 is a 2-input NAND gate which provides the Function Y = A · B or Y = A + B in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I(OFF) supports partial-power-down mode
- Low static power consumption; ICC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 200-V Machine Model (A115-A) - 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AUP1G00C5#C51886116TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹5.93 · 2,990 in stock | View |
 | 74AUP1G00GW-TP#C51886117TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,570 | ₹5.01 · 2,570 in stock | View |
