TECH PUBLIC

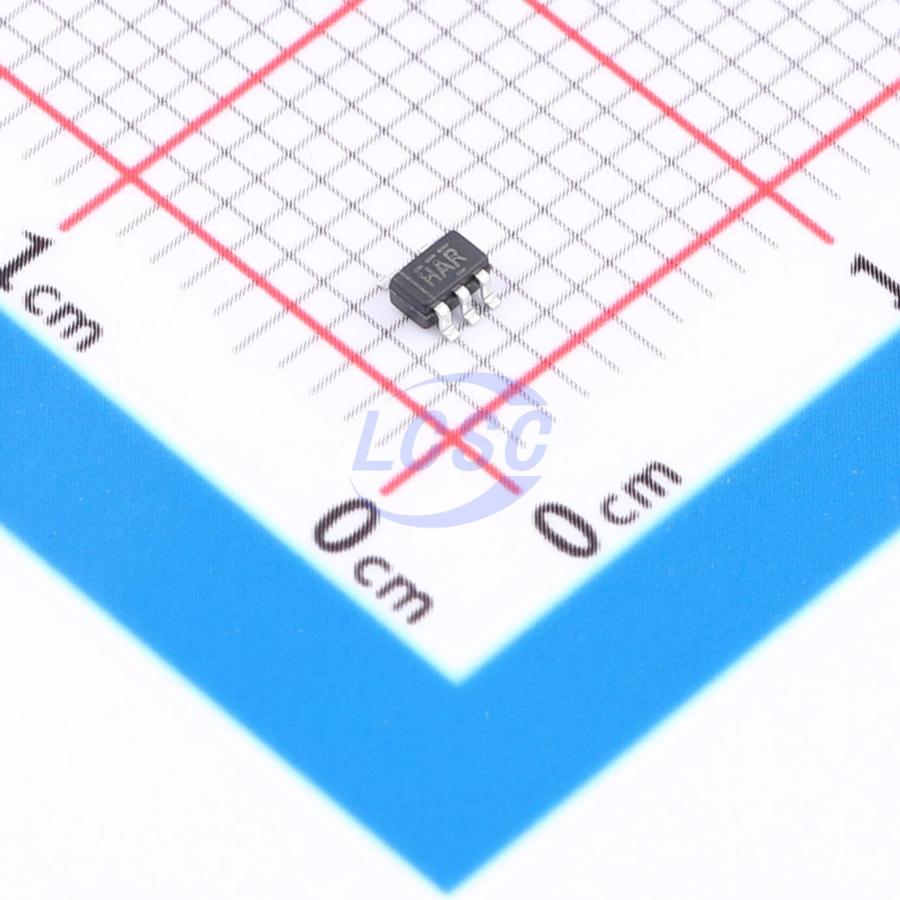

TP74AUP1G00C5

500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TP74AUP1G00C5
Store part #: C51886116
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,990 in stock

#C51886116

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹5.93	₹59.30
100+	₹4.66	₹466.00
300+	₹4.01	₹1,203.00
3,000+	₹3.53	₹10,590.00
6,000+	₹3.15	₹18,900.00
9,000+	₹2.96	₹26,640.00

Quantity (min 10, multiples of 10)

10 × ₹5.93

₹59.30

excl. GST

₹69.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TP74AUP1G00C5

₹59.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Local shutdown mode
Logic Family: 74AUP
Input Logic Level - Low: 700mV;900mV
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.6V;2V
Output Logic Level - High: 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
Quiescent Current(Iq): 500nA
Voltage - Supply: 800mV~3.6V
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Propagation Delay: 2.4ns@3.3V,5pF
Output Logic Level - Low: 100mV;310mV;440mV
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

TP74AUP1G00 is a 2-input NAND gate that implements the function Y = $\overline{A \cdot B}$ or Y = $\overline{A}$ + $\overline{B}$ in positive logic. This device ensures ultralow static and dynamic power consumption across the entire VCC supply voltage range of 0.8V ~ 3.6V.

Applications

Audio/video receivers
Audio docking stations
Blu-ray players and home theater systems
Personal digital assistants
Solid-state drives

Key features

Wide supply voltage range: 0.8V ~ 3.6V
Inputs tolerant up to 3.6V
I<sub>OFF</sub> supports partial power-down mode
Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
ESD protection exceeds JESD 22
2000V Human Body Model (A114-A)
200V Machine Model (A115-A)
1000V Charged Device Model (C101)
