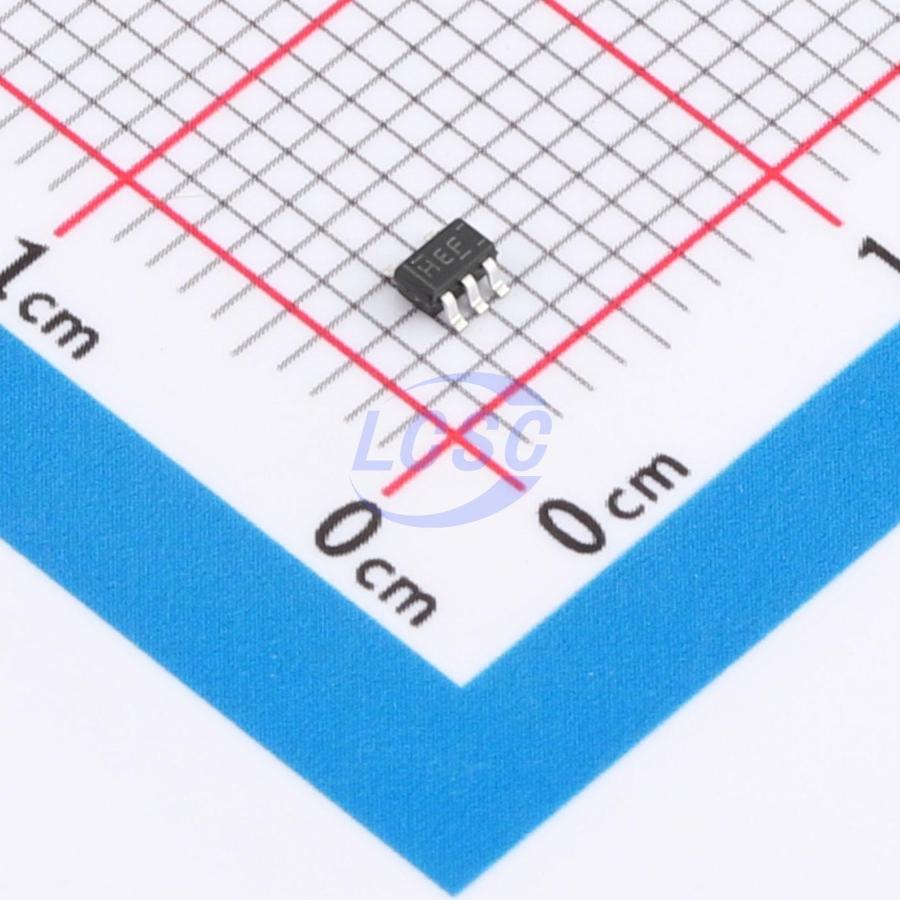

74AUP1G08GW-TP
500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G08GW-TP
- Store part #
- C52098018
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,030 in stock
#C52098018
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G08GW-TP
₹58.90 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Number of Channels
- 1;2
- Propagation Delay
- 2.4ns@3.3V,5pF
- Output Logic Level - Low
- 100mV;310mV;440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74AUP1G08GW-TP is a 2-input AND gate providing the function Y = A̅ · B̅ or Y = A + B in positive logic. The device ensures ultra-low static and dynamic power consumption across the entire VCC range of 0.8V to 3.6V.
Applications
- AV Receivers
- Audio Docks: Portable
- Blu-ray Players & Home Theater
- Embedded PCs
- Personal Digital Assistants
- Power Supplies: Telecom/Server AC/DC: Single Controller: Analog & Digital
- Solid State Drives: Client & Enterprise
- Wireless Headsets, Keyboards & Mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode operation
- Low quiescent current; I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM, 200-V MM, 1000-V CDM
