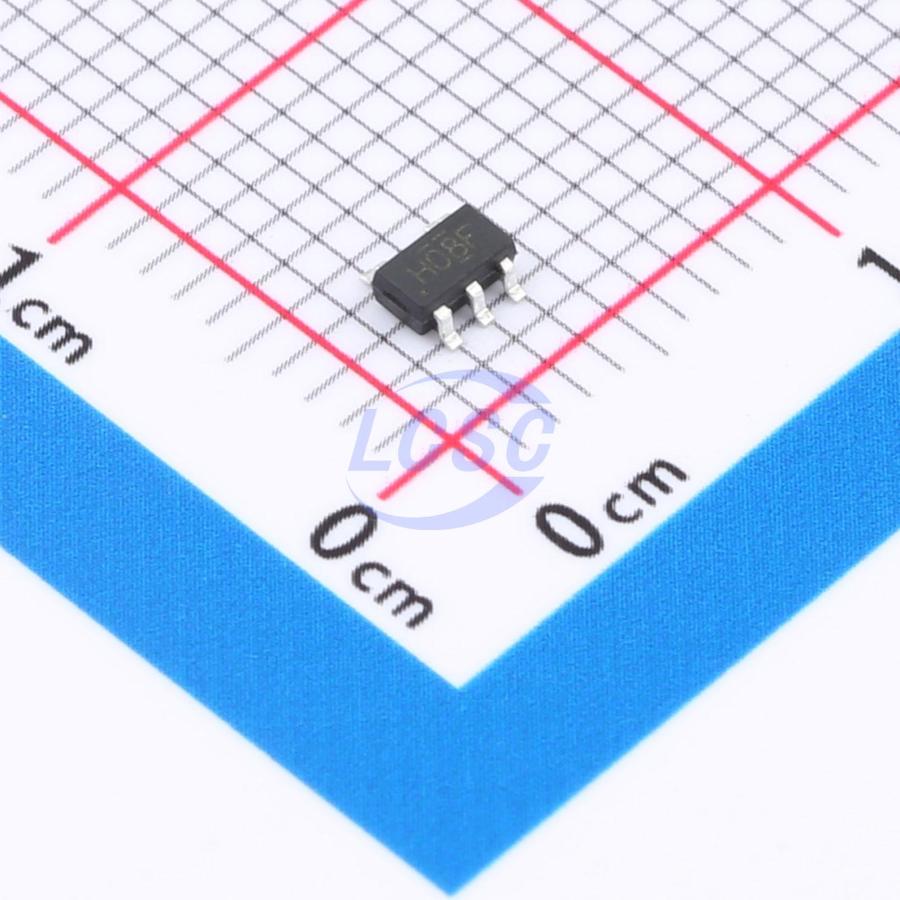

TP74AUP1G08S5
500nA 800mV~3.6V 2.4ns@3.3V,5pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G08S5
- Store part #
- C48886815
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,930 in stock
#C48886815
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.42 | ₹74.20 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 3,000+ | ₹4.59 | ₹13,770.00 |
| 6,000+ | ₹4.14 | ₹24,840.00 |
| 9,000+ | ₹3.92 | ₹35,280.00 |
10 × ₹7.42
₹74.20
excl. GST
₹87.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G08S5
₹74.20 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74AUP
- Input Logic Level - Low
- 700mV;900mV
- Input Logic Level - High
- 1.6V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.6V
- Quiescent Current(Iq)
- 500nA
- Voltage - Supply
- 800mV~3.6V
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 1;2
- Propagation Delay
- 2.4ns@3.3V,5pF
- Output Logic Level - Low
- 440mV
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The TP74AUP1G08 is a 2-input AND gate which provides the Function Y = A • B or Y = A(overline) + B(overline) in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive(SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial-power-down mode
- Low static power consumption; I_CC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114 - A)
- 200-V Machine Model (A115 - A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G08GW-TP#C52098018TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,030 | ₹5.89 · 2,030 in stock | View |
 | SN74AUP1G08DBVR-TP#C48886797TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,660 | ₹6.28 · 2,660 in stock | View |
