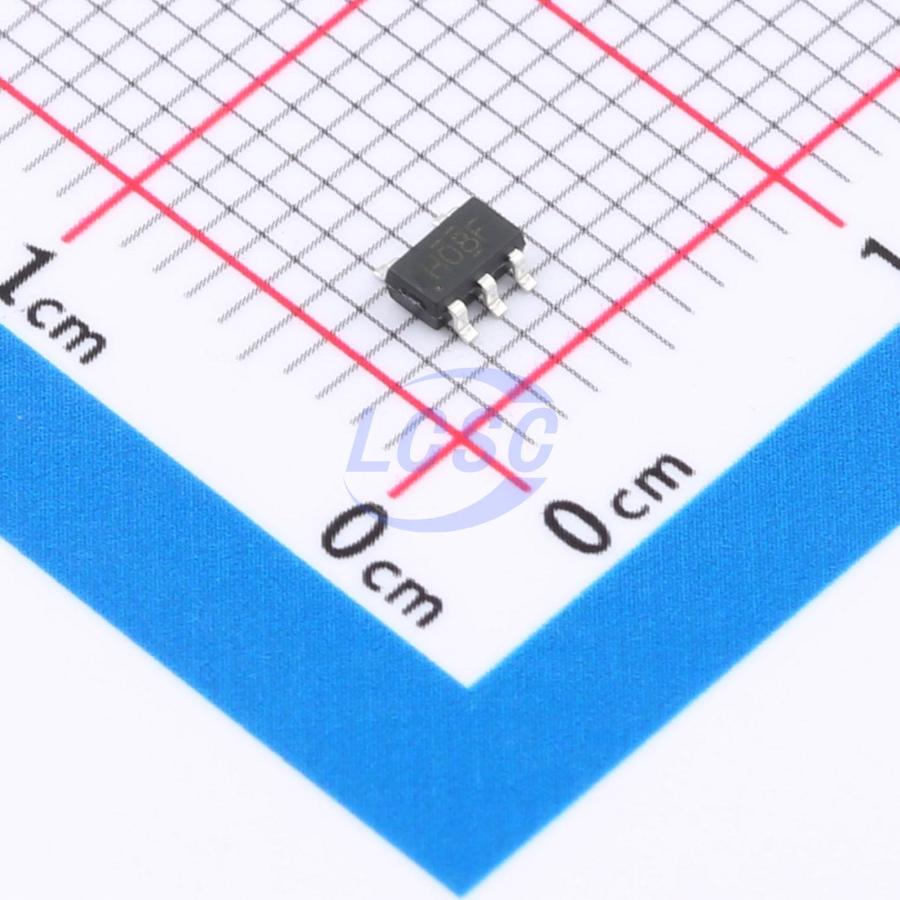

SN74AUP1G08DBVR-TP
800mV~3.6V 2.4ns@3.3V,5pF 500nA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-INPUT AND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AUP1G08DBVR-TP
- Store part #
- C48886797
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,660 in stock
#C48886797
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.28 | ₹62.80 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.37 | ₹1,311.00 |
| 3,000+ | ₹3.89 | ₹11,670.00 |
| 6,000+ | ₹3.51 | ₹21,060.00 |
| 9,000+ | ₹3.31 | ₹29,790.00 |
10 × ₹6.28
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AUP1G08DBVR-TP
₹62.80 for 10 + GST
Specifications
- Logic Family
- AUP
- Voltage - Supply
- 800mV~3.6V
- Output Logic Level - Low
- 100mV;310mV;440mV
- Propagation Delay
- 2.4ns@3.3V,5pF
- Features
- Local shutdown mode
- Input Logic Level - Low
- 0V;700mV;900mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 800mV;1.6V;2V
- Output Logic Level - High
- 1.11V;1.32V;2.05V;1.9V;2.72V;2.6V
- Quiescent Current(Iq)
- 500nA
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The SN74AUP1G08 is a 2 - input AND gate which, provides the Function Y = A • B(overline) or Y(overline) = A + B in positive logic. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8V to 3.6V.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu - ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive(SSD): Client and Enterprise
- Wireless Headset, Keyboard, and Mouse
Key features
- Wide supply voltage range from 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- I_OFF supports partial - power - down mode
- Low static power consumption; I_CC = 0.5μA (Max.)
- ESD Protection Exceeds JESD 22 - 2000 - V Human - Body Model (A114 - A)
- 200 - V Machine Model (A115 - A)
- 1000 - V Charged - Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AUP1G08GW-TP#C52098018TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,030 | ₹5.89 · 2,030 in stock | View |
 | TP74AUP1G08S5#C48886815TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,930 | ₹7.42 · 1,930 in stock | View |
