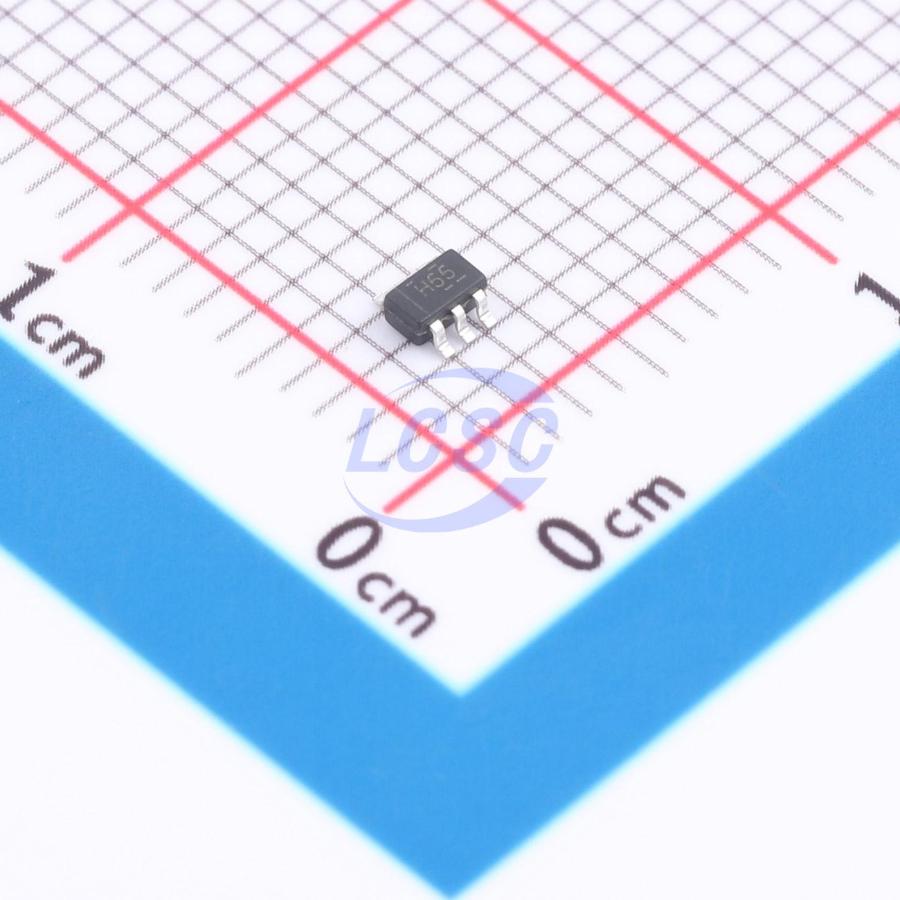

74AUP2G07DW-TP
0.8V~3.6V 1 2 2.2ns@3.3V,5pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP2G07DW-TP
- Store part #
- C51886127
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C51886127
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹5.98 | ₹598.00 |
| 300+ | ₹5.17 | ₹1,551.00 |
| 3,000+ | ₹4.56 | ₹13,680.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.84 | ₹34,560.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP2G07DW-TP
₹76.10 for 10 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
74AUP2G07DW-TP provides a dual non-inverting buffer with open-drain outputs. The device features open-drain output structure, which can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headphones, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; ICC = 0.5μA (maximum)
- ESD protection exceeds JESD 22
- HBM: 2000V (A114-A)
- MM: 200V (A115-A)
- CDM: 1000V (C101)
