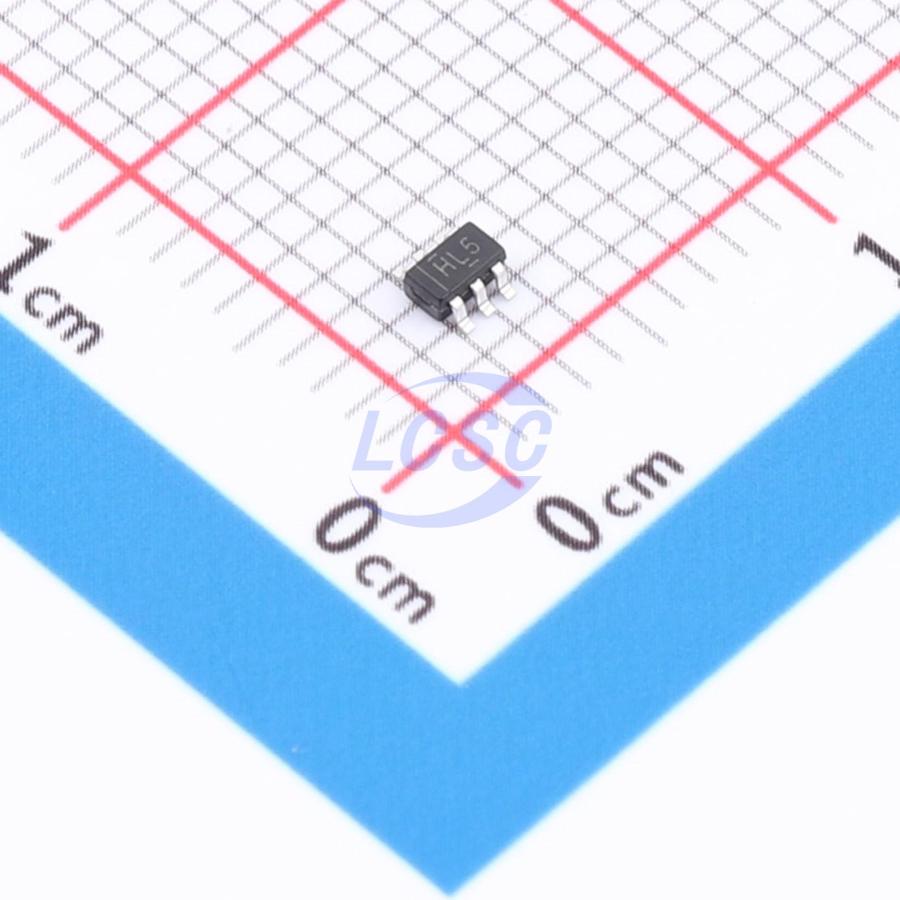

74AUP2G17GW-TP
Schmitt trigger 0.8V~3.6V 1 2 2.7ns@3.3V,5pF SOT-363 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP2G17GW-TP
- Store part #
- C50314219
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C50314219
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP2G17GW-TP
₹98.70 for 10 + GST
Specifications
- Function
- Power-off isolation
- Input type
- Schmitt trigger
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.7ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
The device provides a dual non-inverting buffer with open-drain outputs. The open-drain output structure allows connection with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.
Applications
- Audio docking stations
- Blu-ray players and home theater systems
- Personal digital assistants
- Telecom/server AC/DC power supplies
- Client and enterprise SSDs
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; maximum I_CC = 0.5μA
- ESD protection exceeds JESD 22: HBM 2000V (A114-A); MM 200V (A115-A); CDM 1000V (C101)
