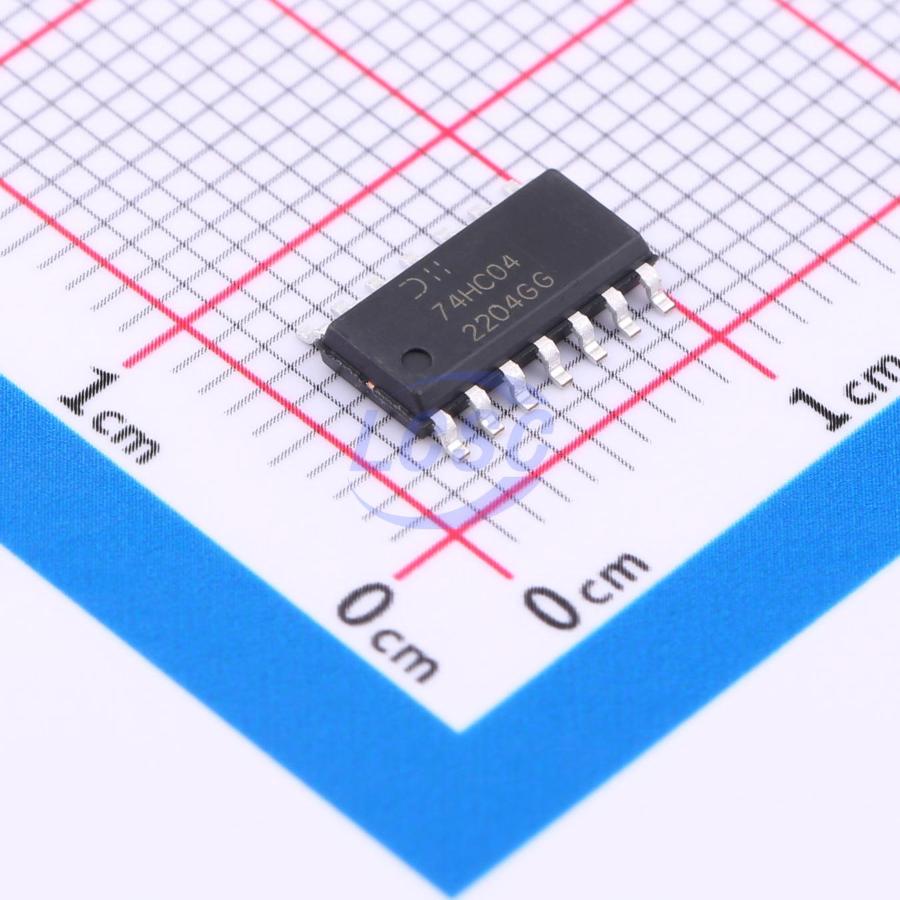

74HC04S14-13
Schmitt trigger 2V~6V 15ns@6V,50pF 20uA 6 SO-14 Gates and Inverters RoHS
SO-14ROHS3 CompliantActive
HEX INVERTERS
- Manufacturer
- DIODES
- Manufacturer part #
- 74HC04S14-13
- Store part #
- C176919
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,365 in stock
#C176919
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.26 | ₹106.30 |
| 50+ | ₹17.75 | ₹887.50 |
| 150+ | ₹16.01 | ₹2,401.50 |
| 500+ | ₹14.70 | ₹7,350.00 |
| 2,500+ | ₹13.65 | ₹34,125.00 |
| 5,000+ | ₹13.12 | ₹65,600.00 |
5 × ₹21.26
₹106.30
excl. GST
₹125.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC04S14-13
₹106.30 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 15ns@6V,50pF
- Features
- Noise suppression function
- Input Logic Level - High
- 1.5V~4.2V
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 500mV~1.8V
- Output Logic Level - High
- 1.9V;3.84V;5.34V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 5.2mA
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
The 74HC04 provides six independent inverters with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. The gates perform the Boolean function: Y = A(overline)
Applications
- General Purpose Logic
- Wide array of products such as: PCs, networking, notebooks, netbooks
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
Key features
- Wide Supply Voltage Range from 2.0V to 6.0V
- Sinks or sources 4mA at VCC = 4.5V
- CMOS low power consumption
- Schmitt Trigger Action at All Inputs
- ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
- Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
