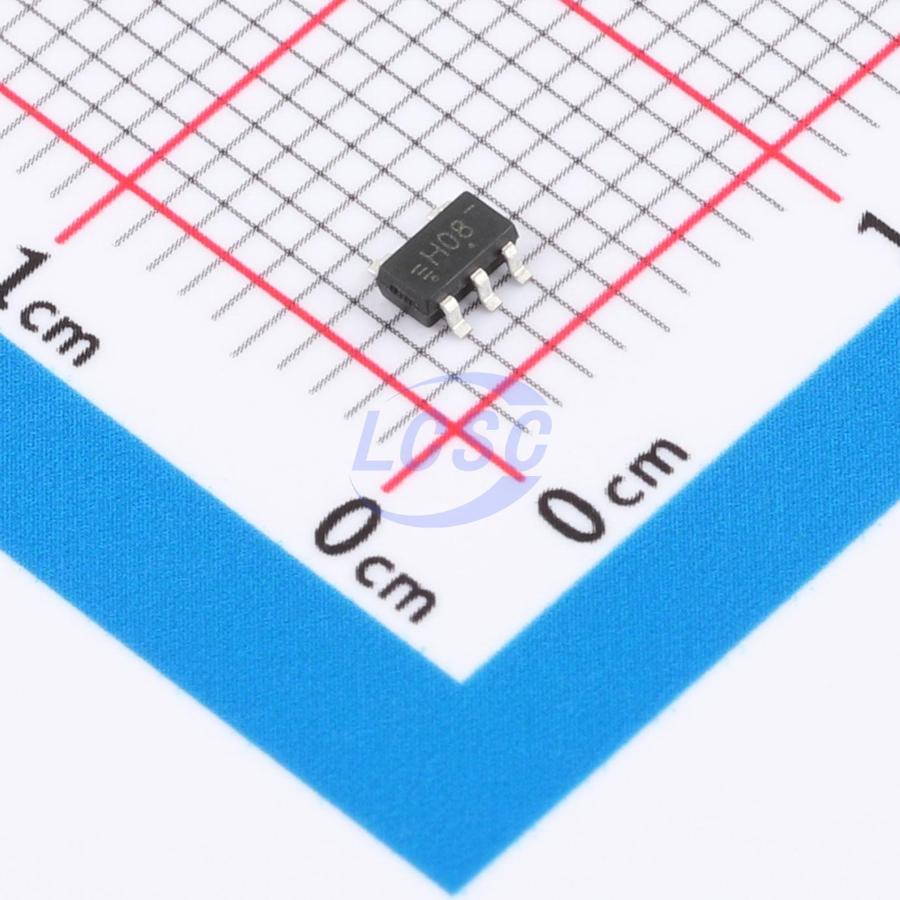

74HC1G08GV
10uA 2V~6V 21ns@6V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G08GV
- Store part #
- C52205096
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,940 in stock
#C52205096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G08GV
₹58.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 21ns@6V,50pF
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74HC1G08 is a high-speed CMOS 2-input AND gate fabricated using silicon gate CMOS technology. Combining CMOS low-power characteristics with high-speed performance comparable to the LS-TTL family, it features an internal three-stage buffered circuit structure that provides wide noise margins and stable output.
Key features
- Basic gate function consistent with Renesas unified logic series product line.
- Embossed carrier tape packaging for high-speed automated placement.
- Electrical characteristics identical to 74HC1G08
- Supply voltage range: 2V to 6V
- Operating temperature range: -40°C to +85°C
- IOH = IOL = 2mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G08DTT1G-TP#C52205172TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 6,010 | ₹5.95 · 6,010 in stock | View |
 | NC7S08M5X#C19829496TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,720 | ₹7.98 · 2,720 in stock | View |
 | TC7SH08F-TP#C54195011TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,970 | ₹5.81 · 2,970 in stock | View |
 | 74AHC1G08GV#C19829585TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 8,130 | ₹4.19 · 8,130 in stock | View |
 | SN74AHC1G08DBVR#C19829667TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 10,230 | ₹7.61 · 10,230 in stock | View |
