TECH PUBLICDatasheet (PDF)

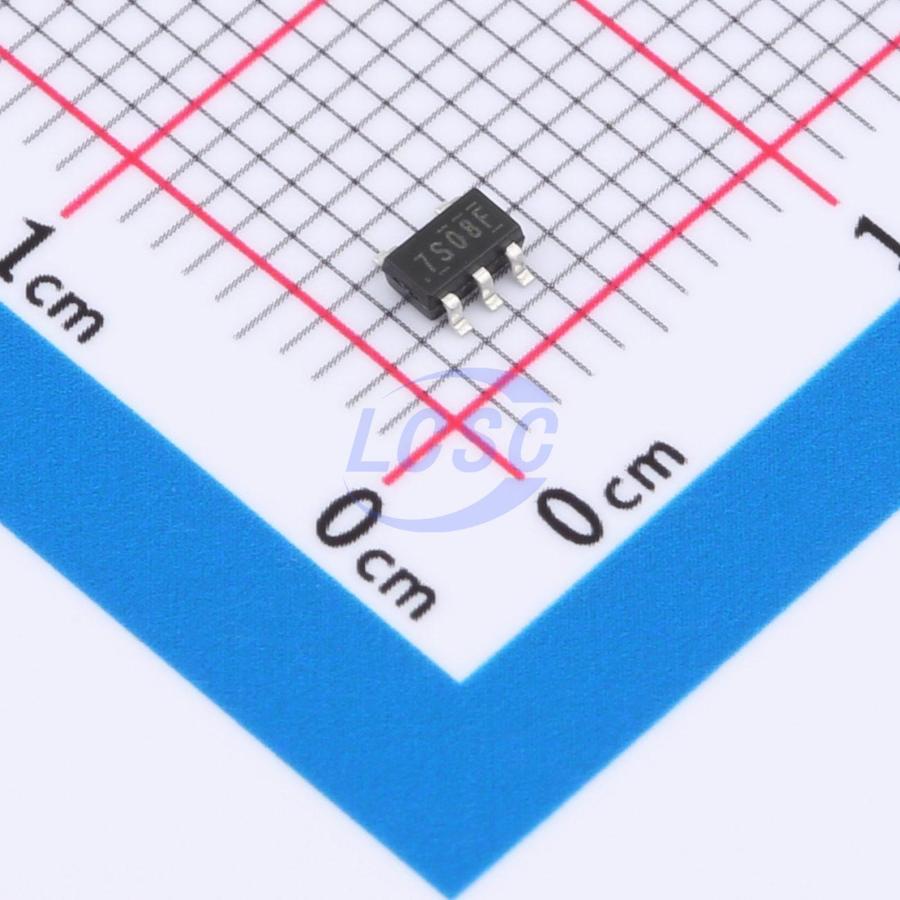

NC7S08M5X
10uA 2V~6V 21ns@6V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-input AND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S08M5X
- Store part #
- C19829496
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,720 in stock
#C19829496
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.98 | ₹79.80 |
| 100+ | ₹6.47 | ₹647.00 |
| 300+ | ₹5.72 | ₹1,716.00 |
| 3,000+ | ₹5.15 | ₹15,450.00 |
| 6,000+ | ₹4.70 | ₹28,200.00 |
| 9,000+ | ₹4.46 | ₹40,140.00 |
10 × ₹7.98
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S08M5X
₹79.80 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 2mA
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 21ns@6V,50pF
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
NC7S08M5X are CMOS 2-input AND gate ICs. They realize a high speed operation similar to LSTTL with a lower power consumption by CMOS features. An inner circuit structure of 3-stages logic gates obtains wider noise immunity and constant output.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Power voltage range: 2.0 ~ 6.0V
- Operation temp. range: -40 ~ +85°C
- |IOH| = IOL = 2mA (min)
- ESD Protection Exceeds ESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
