TECH PUBLICDatasheet (PDF)

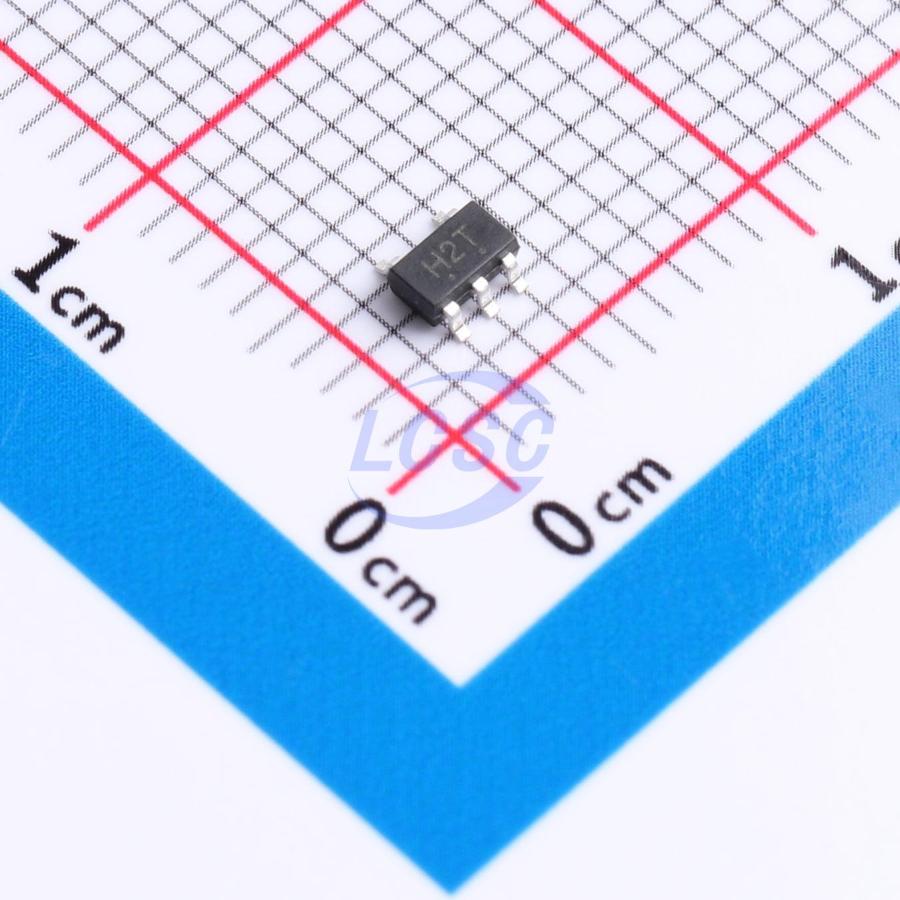

MC74HC1G08DTT1G-TP
2V~6V 17ns@6V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC1G08DTT1G-TP
- Store part #
- C52205172
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,300 in stock
#C52205172
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.95 | ₹59.50 |
| 100+ | ₹4.70 | ₹470.00 |
| 300+ | ₹4.06 | ₹1,218.00 |
| 3,000+ | ₹3.59 | ₹10,770.00 |
| 6,000+ | ₹3.21 | ₹19,260.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹5.95
₹59.50
excl. GST
₹70.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G08DTT1G-TP
₹59.50 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 17ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V;5.63V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The MC74HC1G08 is a high-speed CMOS 2-input AND gate fabricated using silicon gate CMOS technology. Combining the low-power characteristics of CMOS with high-speed performance equivalent to the LS-TTL series, it features an internal 3-stage buffered circuit structure that provides wide noise margins and stable output.
Key features
- Basic gate function belongs to the Renesas uni logic series.
- Embossed carrier tape packaging for high-speed automated placement.
- Electrical characteristics equivalent to MC74HC1G08.
- Supply voltage range: 2 to 6V.
- Operating temperature range: -40 to +85°C.
- IOH = IOL = 2mA(min).
