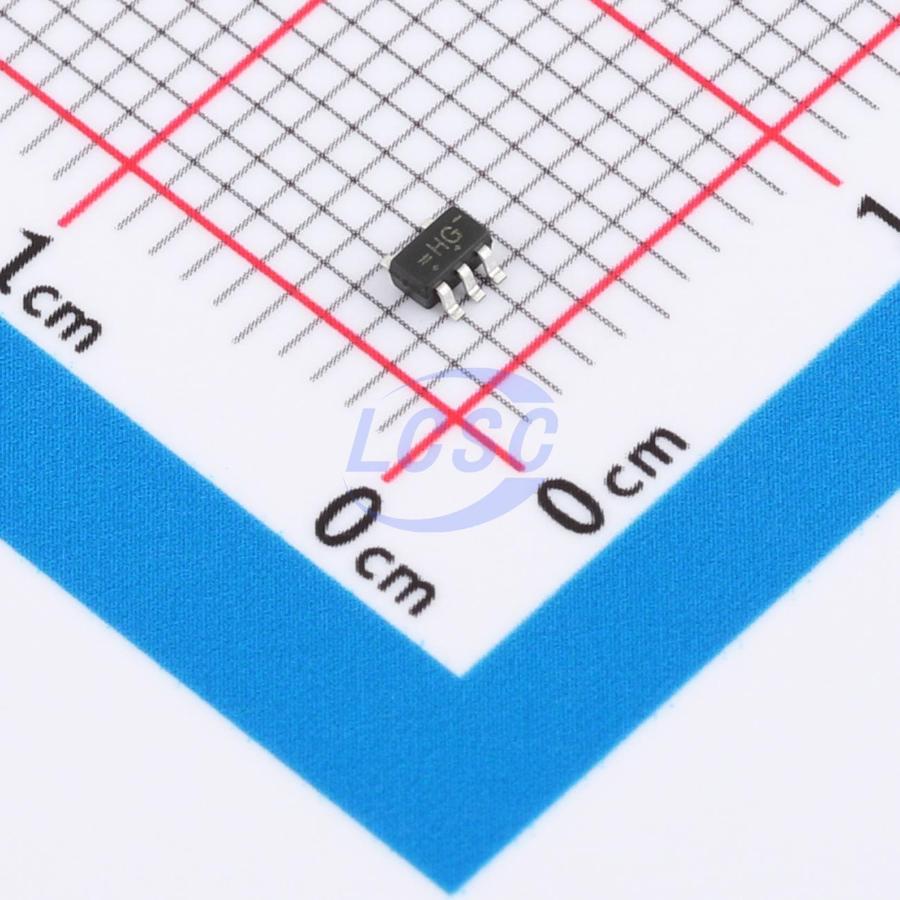

74HC1G32GW
1uA 2V~6V 25ns@4.5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G32GW
- Store part #
- C52205105
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,170 in stock
#C52205105
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.24 | ₹62.40 |
| 100+ | ₹4.92 | ₹492.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.77 | ₹11,310.00 |
| 6,000+ | ₹3.37 | ₹20,220.00 |
| 9,000+ | ₹3.18 | ₹28,620.00 |
10 × ₹6.24
₹62.40
excl. GST
₹73.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G32GW
₹62.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 25ns@4.5V,50pF
- Output Logic Level - Low
- 260mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
74HC1G32 is a high-speed CMOS 2-input OR gate fabricated using silicon gate CMOS technology. Combining the low power consumption of CMOS with high-speed performance comparable to the LS-TTL family, it features an internal buffered three-stage circuit architecture that provides wide noise margins and stable output.
Key features
- Basic gate functions aligned with Renesas uni logic series.
- Embossed carrier tape packaging for high-speed automated placement.
- Supply voltage range: 2 to 6V
- Operating temperature range: -40 to +85°C
- |I_OH| = I_OL = 2 mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G32DFT1G-TP#C52205175TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,860 | ₹5.77 · 2,860 in stock | View |
 | M74VHC1GT32DFT2G-TP#C52098020TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,995 | ₹13.27 · 2,995 in stock | View |
 | TP74AHC1G32C5#C52205197TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
 | 74AHC1G32SE-TP#C52098178TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,650 | ₹6.43 · 3,650 in stock | View |
 | SN74AHC1G32DCKR-TP#C19829638TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 6,700 | ₹4.88 · 6,700 in stock | View |
