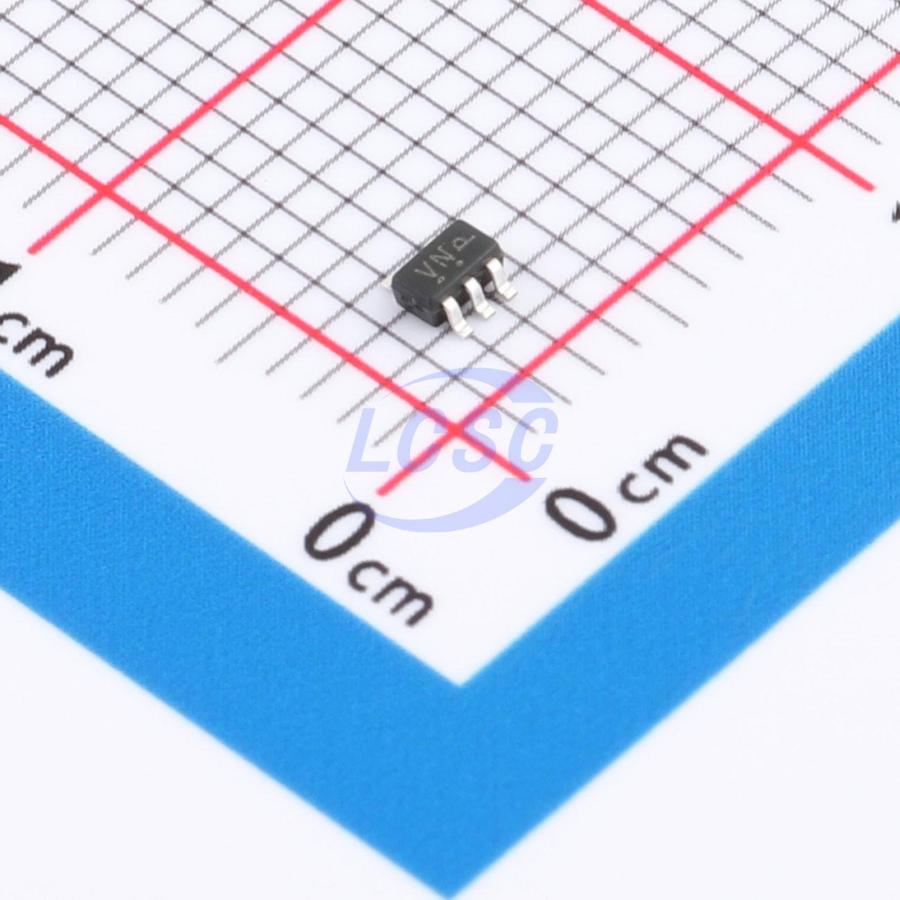

M74VHC1GT32DFT2G-TP
10uA 2V~6V 25ns@4.5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- M74VHC1GT32DFT2G-TP
- Store part #
- C52098020
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,995 in stock
#C52098020
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.27 | ₹66.35 |
| 50+ | ₹10.44 | ₹522.00 |
| 150+ | ₹9.02 | ₹1,353.00 |
| 500+ | ₹7.95 | ₹3,975.00 |
| 3,000+ | ₹7.10 | ₹21,300.00 |
| 6,000+ | ₹6.68 | ₹40,080.00 |
5 × ₹13.27
₹66.35
excl. GST
₹78.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
M74VHC1GT32DFT2G-TP
₹66.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74VHC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 1;2
- Propagation Delay
- 25ns@4.5V,50pF
- Output Logic Level - Low
- 260mV
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The M74VHC1GT32 is a CMOS 2-input OR gate IC. It leverages the characteristics of CMOS technology to achieve high-speed operation comparable to LS-TTL while offering lower power consumption. Its internal three-stage logic gate structure provides wider noise margins and stable outputs.
Applications
- Voltage level translation
- General-purpose logic
- Power-off signal isolation
Key features
- Supply voltage range: 2.0~6.0V
- Operating temperature range: -40~+85℃
- |IOH| = IOL = 2mA (minimum)
- ESD protection exceeds ESD 22 standard: -2000-V Human Body Model (A114-A), -1000-V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G32GW#C52205105TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,170 | ₹6.24 · 1,170 in stock | View |
 | MC74HC1G32DFT1G-TP#C52205175TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,860 | ₹5.77 · 2,860 in stock | View |
 | TP74AHC1G32C5#C52205197TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
 | 74AHC1G32SE-TP#C52098178TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,650 | ₹6.43 · 3,650 in stock | View |
 | MC74VHC1G32DFT1G-TP#C53100500TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,880 | ₹6.40 · 2,880 in stock | View |
