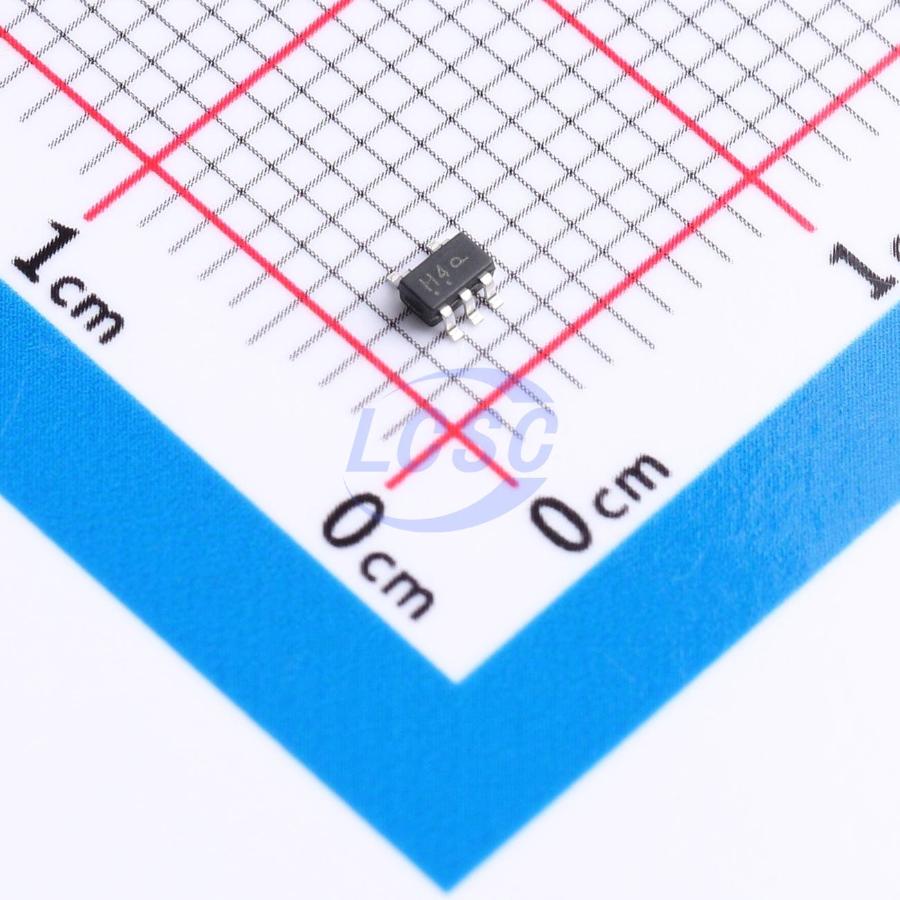

MC74HC1G32DFT1G-TP
10uA 2V~6V 15ns@5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC1G32DFT1G-TP
- Store part #
- C52205175
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C52205175
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.54 | ₹454.00 |
| 300+ | ₹3.93 | ₹1,179.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G32DFT1G-TP
₹57.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 15ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV;330mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
MC74HC1G32 is a high-speed CMOS 2-input OR gate fabricated using silicon gate CMOS technology. Combining the low-power characteristics of CMOS with high-speed performance comparable to the LS-TTL series, it features an internal three-stage buffered structure that provides wide noise margins and stable output.
Key features
- Basic gate function aligned with Renesas uni logic series.
- Bump tape carrier package for high-speed automated placement.
- Electrical characteristics equivalent to MC74HC1G32.
- Supply voltage range: 2 to 6V.
- Operating temperature range: -40 to +85°C.
- |IOH| = IOL = 2mA(min).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G32GW#C52205105TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,170 | ₹6.24 · 1,170 in stock | View |
 | M74VHC1GT32DFT2G-TP#C52098020TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,995 | ₹13.27 · 2,995 in stock | View |
 | TP74AHC1G32C5#C52205197TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹7.38 · 3,000 in stock | View |
 | 74AHC1G32SE-TP#C52098178TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,650 | ₹6.43 · 3,650 in stock | View |
 | TC7SH32FU-TP#C54195022TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 3,000 | ₹6.34 · 3,000 in stock | View |
