74HC244PW,118
2V~6V 4 2 11ns@4.5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive

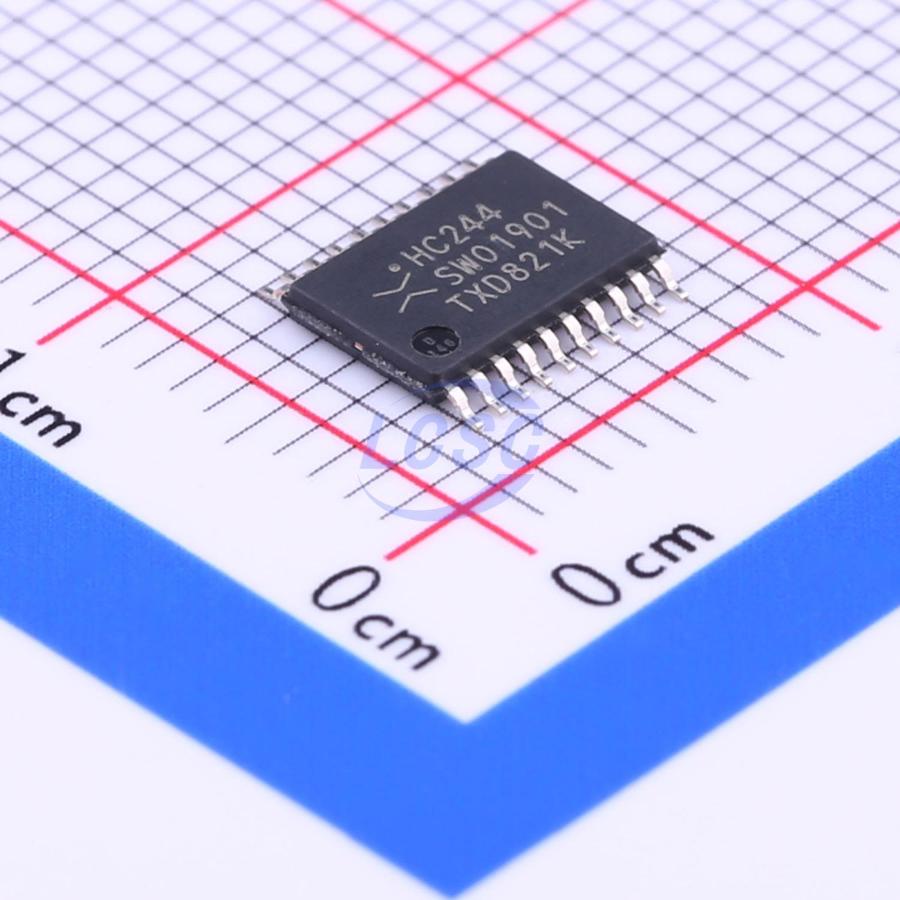

Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC244PW,118
- Store part #
- C5623
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50,915 in stock
#C5623
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.28 | ₹181.40 |
| 50+ | ₹28.34 | ₹1,417.00 |
| 150+ | ₹24.46 | ₹3,669.00 |
| 500+ | ₹21.01 | ₹10,505.00 |
| 2,500+ | ₹20.06 | ₹50,150.00 |
| 5,000+ | ₹19.49 | ₹97,450.00 |
5 × ₹36.28
₹181.40
excl. GST
₹214.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC244PW,118
₹181.40 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.326 g
Overview
The 74HC244; 74HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels: For 74HC244: CMOS level; For 74HCT244: TTL level
- Octal bus interface
- Non-inverting 3-state outputs
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM JESD22-A114F exceeds 2000 V, MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HC244PW-Q100,118#C546755Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 3 | ₹53.57 · 3 in stock | View | |
 | SN74HC244QPWRG4Q1#C2859587TI · TSSOP-20 | TI | TSSOP-20 | 5 | ₹135.30 · 5 in stock | View |
 | AIP74HC244TA20.TR#C5196954Wuxi I-core Elec · TSSOP-20 | Wuxi I-core Elec | TSSOP-20 | 3,965 | ₹25.65 · 3,965 in stock | View |
 | 74HC244PWRG#C19723795HANSCHIP semiconductor · TSSOP-20 | HANSCHIP semiconductor | TSSOP-20 | 1,870 | ₹21.58 · 1,870 in stock | View |
 | SN74HC244APWR#C2866107TI · TSSOP-20 | TI | TSSOP-20 | 4 | ₹48.73 · 4 in stock | View |
