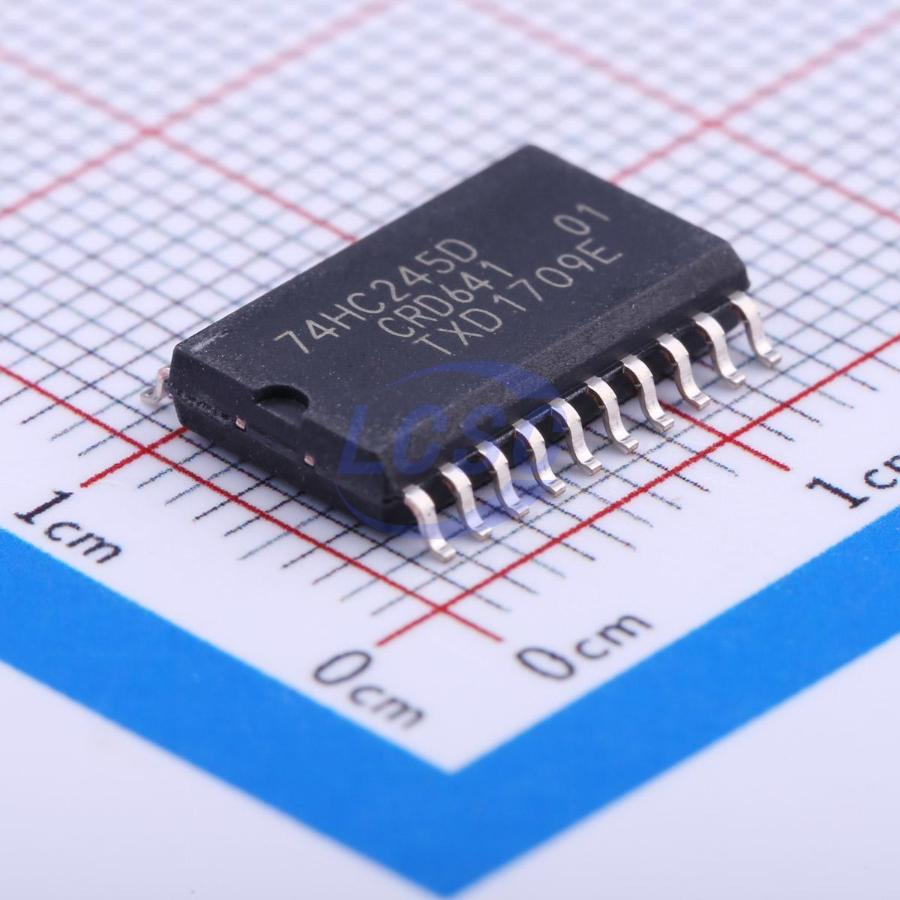

74HC245D,653
2V~6V 8 1 9ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC245D,653
- Store part #
- C5625
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,070 in stock
#C5625
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.12 | ₹145.60 |
| 50+ | ₹22.32 | ₹1,116.00 |
| 150+ | ₹19.00 | ₹2,850.00 |
| 500+ | ₹16.05 | ₹8,025.00 |
| 2,000+ | ₹14.39 | ₹28,780.00 |
| 4,000+ | ₹13.90 | ₹55,600.00 |
5 × ₹29.12
₹145.60
excl. GST
₹171.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC245D,653
₹145.60 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 9ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.759 g
Overview
The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- 8-channel bidirectional bus interface
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Octal bidirectional bus interface
- Non-inverting 3-state outputs
- Input levels: For 74HC245: CMOS level For 74HCT245: TTL level
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC245D (LX)#C22374050lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 55 | ₹19.13 · 55 in stock | View |
 | SN74LS245DWR(LX)#C22374099lingxingic · SOP-20-300mil | lingxingic | SOP-20-300mil | 500 | ₹65.63 · 500 in stock | View |
 | 74HC245D#C2675537TOSHIBA · SOIC-20-300mil | TOSHIBA | SOIC-20-300mil | 176 | ₹88.64 · 176 in stock | View |
 | 74HC245BM/TR#C7432199HGSEMI · SOP-20-300mil | HGSEMI | SOP-20-300mil | 1,180 | ₹27.86 · 1,180 in stock | View |
 | SN74HC245DWR#C10093TI · SOIC-20-300mil | TI | SOIC-20-300mil | 15,880 | ₹54.43 · 15,880 in stock | View |
