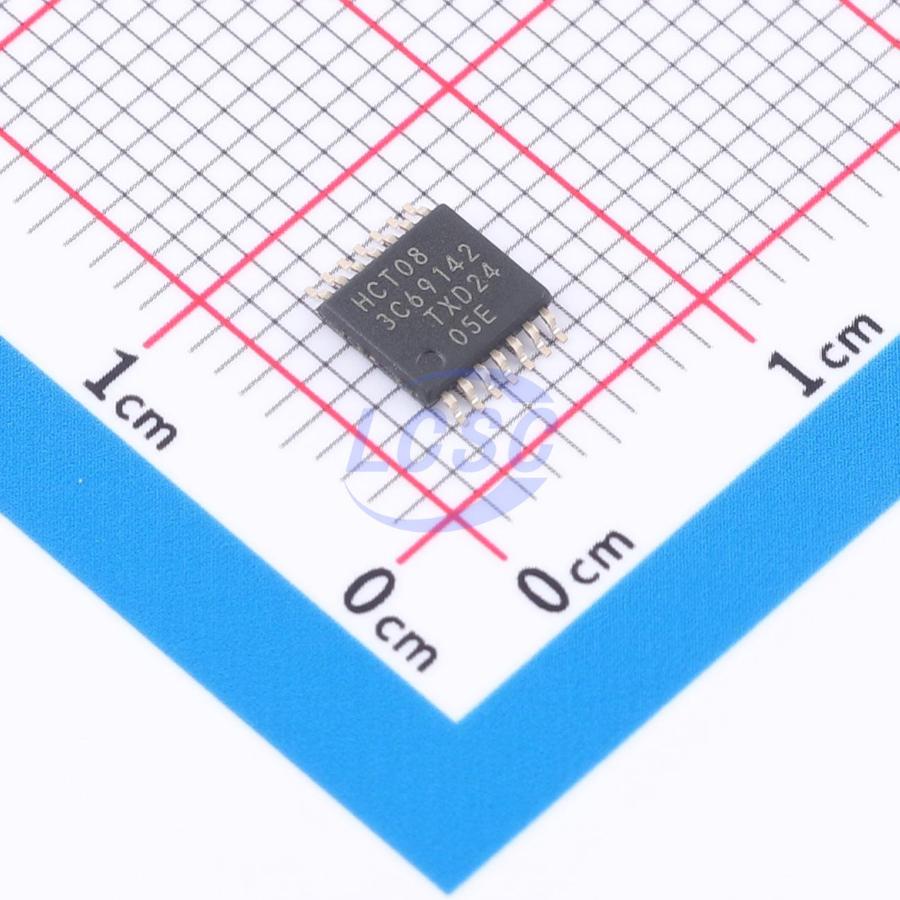

Quad 2-input AND gate

Manufacturer: Nexperia
Manufacturer part #: 74HCT08PW-Q100,118
Store part #: C547223
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,840 in stock

#C547223

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹13.93	₹69.65
50+	₹13.59	₹679.50
150+	₹13.35	₹2,002.50
500+	₹13.12	₹6,560.00

Quantity (min 5, multiples of 5)

5 × ₹13.93

₹69.65

excl. GST

₹82.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HCT08PW-Q100,118

₹69.65 for 5 + GST

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74HCT Series
Voltage - Supply: 4.5V~5.5V
Output Logic Level - Low: 400mV
Propagation Delay: 24ns@4.5V,50pF
Features: Overvoltage-tolerant input
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 800mV
Input Logic Level - High: 2V
Output Logic Level - High: 3.7V
Quiescent Current(Iq): 2uA
Current - Output High(IOH): 4mA
Number of Channels: 4;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.175 g

Overview

The 74HC08-Q100; 74HCT08-Q100 is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Automotive applications

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 2.0 V to 6.0 V
CMOS low power dissipation
High noise immunity
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Input levels:
For 74HC08-Q100: CMOS level For 74HCT08-Q100: TTL level
Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
ESD protection:
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Multiple package options
DHVQFN package with Side-Wettable Flanks enabling Automatic Optical Inspection (AOI) of solder joints
