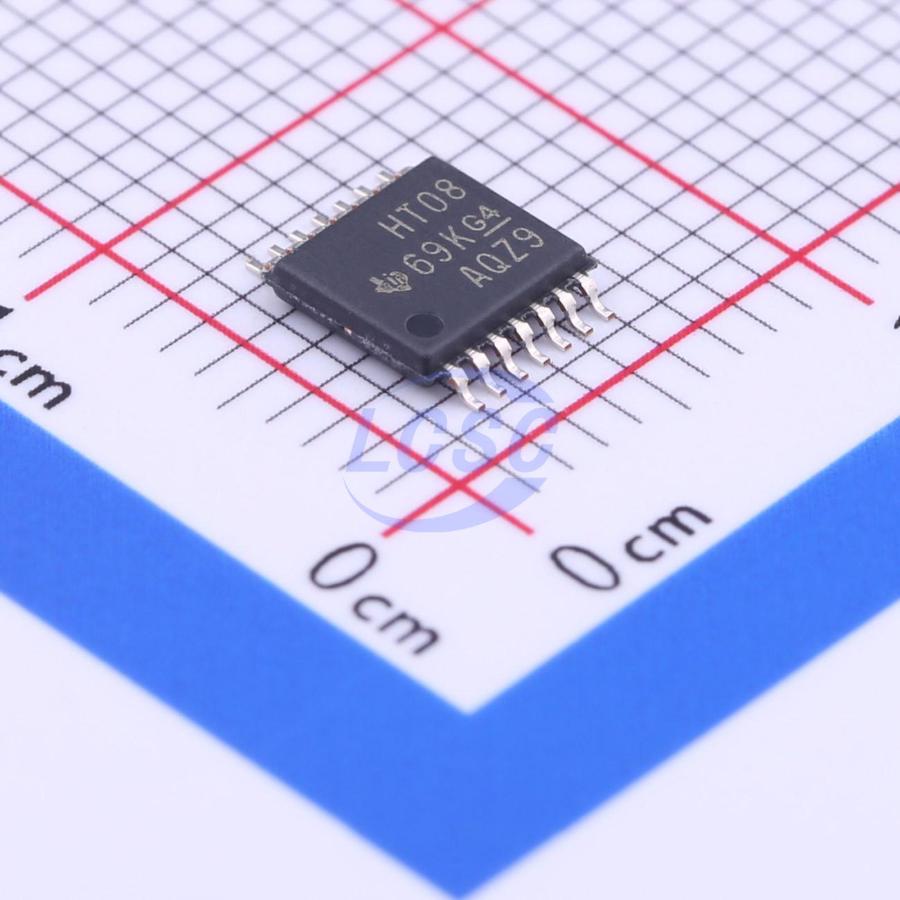

SN74HCT08PWR
TTL-compatible CMOS 4.5V~5.5V 22ns@5.5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-AND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT08PWR
- Store part #
- C8181
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,355 in stock
#C8181
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹57.25 | ₹286.25 |
| 50+ | ₹43.00 | ₹2,150.00 |
| 150+ | ₹36.89 | ₹5,533.50 |
| 500+ | ₹29.26 | ₹14,630.00 |
| 2,000+ | ₹25.88 | ₹51,760.00 |
| 4,000+ | ₹23.84 | ₹95,360.00 |
5 × ₹57.25
₹286.25
excl. GST
₹337.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT08PWR
₹286.25 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 22ns@5.5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.84V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
These devices contain four independent 2-input AND gates. They perform the Boolean function Y = A•B or Y = A(overline) + B(overline) in positive logic.
Key features
- Operating Voltage Range of 4.5 V to 5.5 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max Icc
- Typical tpd = 13 ns
- ± 4 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
- Inputs Are TTL-Voltage Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MM74HCT08MTCX#C904267onsemi · TSSOP-14 | onsemi | TSSOP-14 | 36 | ₹127.44 · 36 in stock | View |
 | 74HCT08PW,118#C131488Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 30,115 | ₹28.70 · 30,115 in stock | View |
 | 74HCT08PW-Q100,118#C547223Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 4,840 | ₹13.93 · 4,840 in stock | View |
 | SN74AHCT08PWR#C155175TI · TSSOP-14 | TI | TSSOP-14 | 4,065 | ₹45.66 · 4,065 in stock | View |
 | SN74ACT08PWR#C544637TI · TSSOP-14 | TI | TSSOP-14 | 175 | ₹45.31 · 175 in stock | View |
