NexperiaDatasheet (PDF)

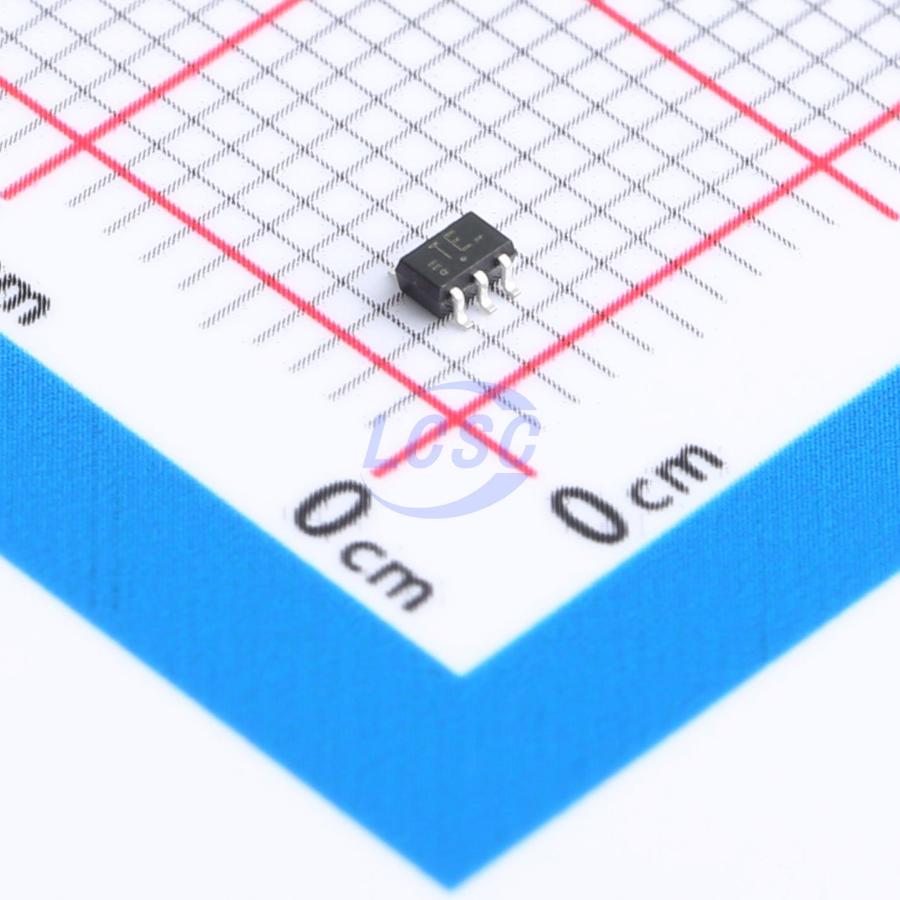

74HCT1G08GW,125
TTL-compatible CMOS 4.5V~5.5V 27ns@4.5V,50pF 20uA TSSOP-5 Gates and Inverters RoHS
TSSOP-5ROHS3 CompliantActive
2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT1G08GW,125
- Store part #
- C455047
- Package / case
- TSSOP-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,300 in stock
#C455047
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.22 | ₹141.10 |
| 50+ | ₹22.04 | ₹1,102.00 |
| 150+ | ₹19.40 | ₹2,910.00 |
| 500+ | ₹16.09 | ₹8,045.00 |
| 3,000+ | ₹14.62 | ₹43,860.00 |
| 6,000+ | ₹13.73 | ₹82,380.00 |
5 × ₹28.22
₹141.10
excl. GST
₹166.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HCT1G08GW,125
₹141.10 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 330mV;400mV
- Propagation Delay
- 27ns@4.5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 2mA
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The 74HC1G08; 74HCT1G08 is a single 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Symmetrical output impedance
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC1G08: CMOS level
- For 74HCT1G08: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0V to 6.0V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT1G08GW-Q100,1#C547446Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 6,335 | ₹22.31 · 6,335 in stock | View |
 | NC7ST08P5X#C891938onsemi · SOT-353 | onsemi | SOT-353 | 2,290 | ₹9.10 · 2,290 in stock | View |
 | SN74AHCT1G08DCKR#C113517TI · SC-70-5 | TI | SC-70-5 | 12,260 | ₹15.96 · 12,260 in stock | View |
 | SN74AHCT1G08DCKT#C2864983TI · SC-70-5 | TI | SC-70-5 | 38 | ₹111.24 · 38 in stock | View |
 | 74AHCT1G08GW,125-JSM#C53114383JSMSEMI · SOT-353 | JSMSEMI | SOT-353 | 2,950 | ₹10.19 · 2,950 in stock | View |
