TECH PUBLIC

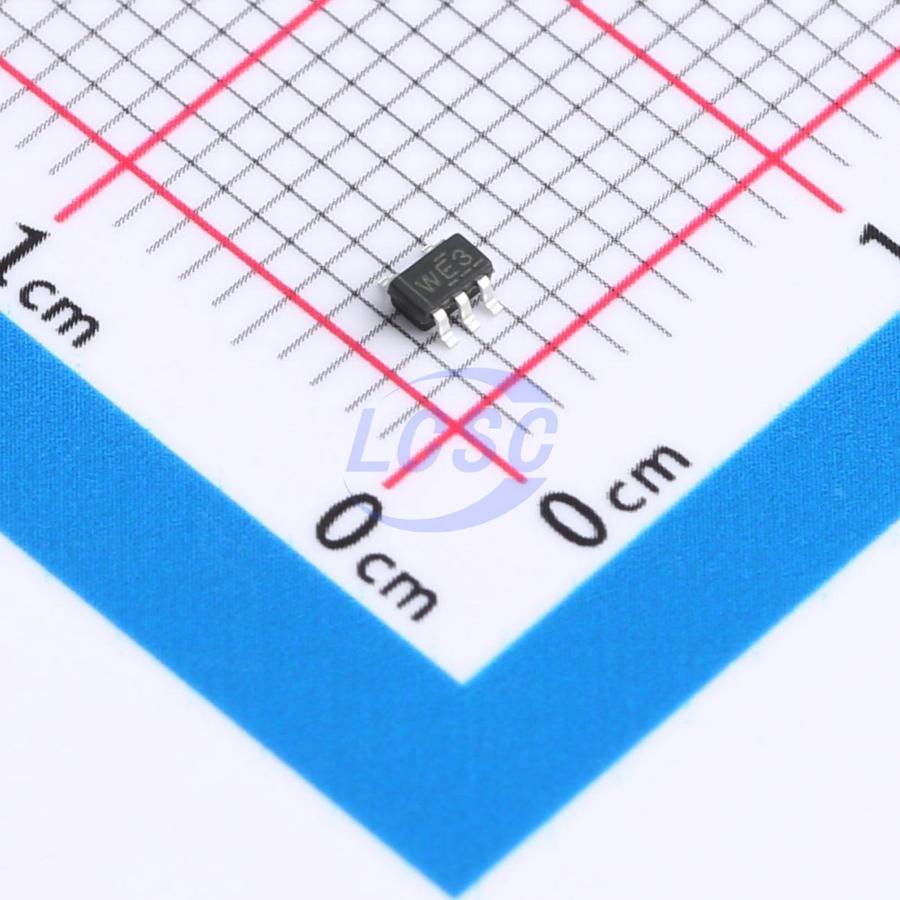

74LV1T08GW-TP

1 1 SOT-353 Translators, Level Shifters

SOT-353RoHSActive

SINGLE POWER SUPPLY 2-INPUT POSITIVE AND GATE CMOS LOGIC LEVEL SHIFTER

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LV1T08GW-TP
Store part #: C42460230
Package / case: SOT-353
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,780 in stock

#C42460230

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.41	₹84.10
100+	₹6.69	₹669.00
300+	₹5.83	₹1,749.00
3,000+	₹5.19	₹15,570.00
6,000+	₹4.67	₹28,020.00
9,000+	₹4.42	₹39,780.00

Quantity (min 10, multiples of 10)

10 × ₹8.41

₹84.10

excl. GST

₹99.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LV1T08GW-TP

₹84.10 for 10 + GST

Specifications

Output Signal: CMOS
Operating Temperature: -40℃~+125℃
Input Signal: CMOS
Number of Elements: 1
Channel Type: Unidirectional
Voltage - Supply: 1.6V~5.5V;1.6V~5.5V
Number of Circuits: 1

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

74LV1T08GW-TP is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V, 2.5V, 3.3V, 5V CMOS levels. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V) The wide Vcc range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors.

Key features

Single supply voltage translator at 1.8V, 2.5V, 3.3V and 5.0V
Low Power Current: Icc = 10μA (Max.)
±8mA Output Drive (VCC = 5.0V)
ESD Protection Exceeds JESD 22 -2000-V Human-Body Model (A114-A)
-200-V Machine Model (A115-A)
-1000-V Charged-Device Model (C101)
