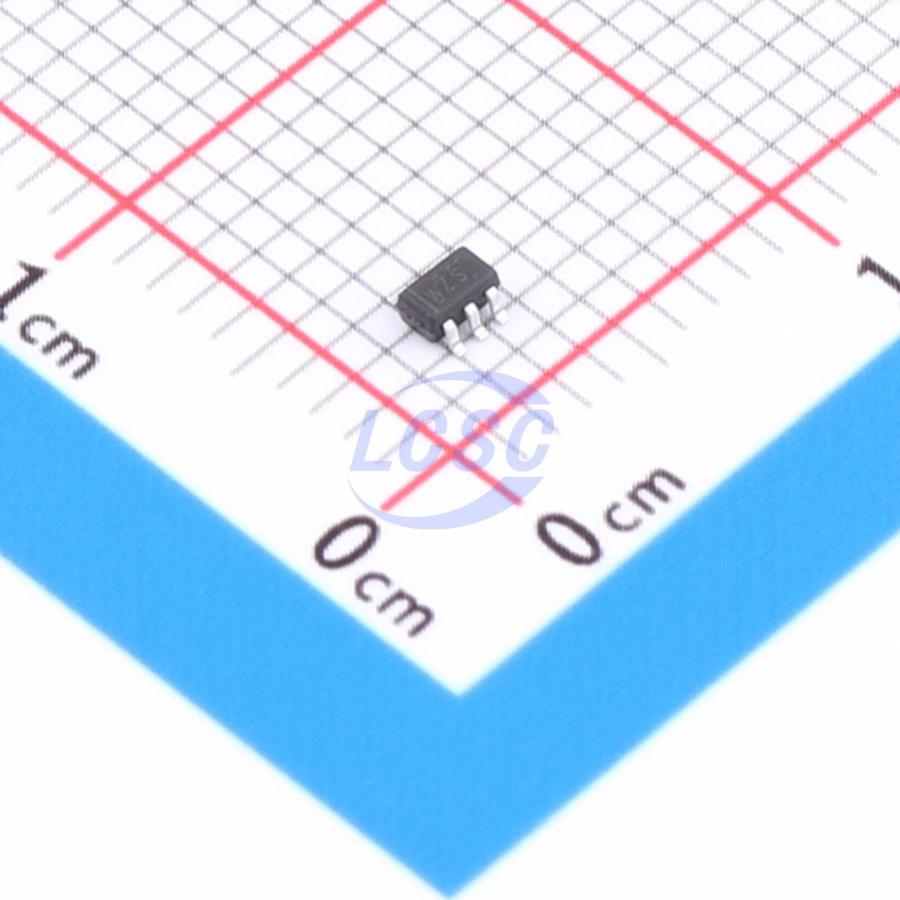

74LV1T125GWH-TP
1 1 SOT-353 Translators, Level Shifters RoHS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LV1T125GWH-TP
- Store part #
- C50314220
- Package / case
- SOT-353
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C50314220
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.76 | ₹2,028.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LV1T125GWH-TP
₹98.70 for 10 + GST
Specifications
- output type
- Tri-State
- Output Signal
- CMOS
- Input Signal
- CMOS
- Operating Temperature
- -40℃~+125℃
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Features
- Power-off protection;Output enable high-impedance
- Voltage - Supply
- 1.6V~5.5V;1.6V~5.5V
- Number of Circuits
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
74LV1T125GWH-TP is a single-channel level-shifting buffer driver with 3-state output. The 3-state output is controlled by an output enable input (OE). When OE is high, the output enters a high-impedance state (disabled state). Output levels reference the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5.0V CMOS logic levels. Its low-threshold input supports 1.8V input logic at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. Additionally, its 5V-tolerant input pins support level down-translation (e.g., 3.3V to 2.5V output at VCC = 2.5V).
Applications
- AV receivers
- Audio docking stations
- Blu-ray players & home theater systems
- Embedded PCs
- Personal digital assistants
- Power supplies
- Solid-state drives
- Wireless headsets, keyboards & mice
Key features
- Operating voltage range: 1.6V to 5.5V
- Low quiescent current: Icc = 10μA (maximum)
- Output drive capability: ±8mA (at VCC = 5.0V)
- Power-off protection
- ESD protection exceeds JESD 22: HBM (A114-A) 2000V, MM (A115-A) 200V, CDM (C101) 1000V
