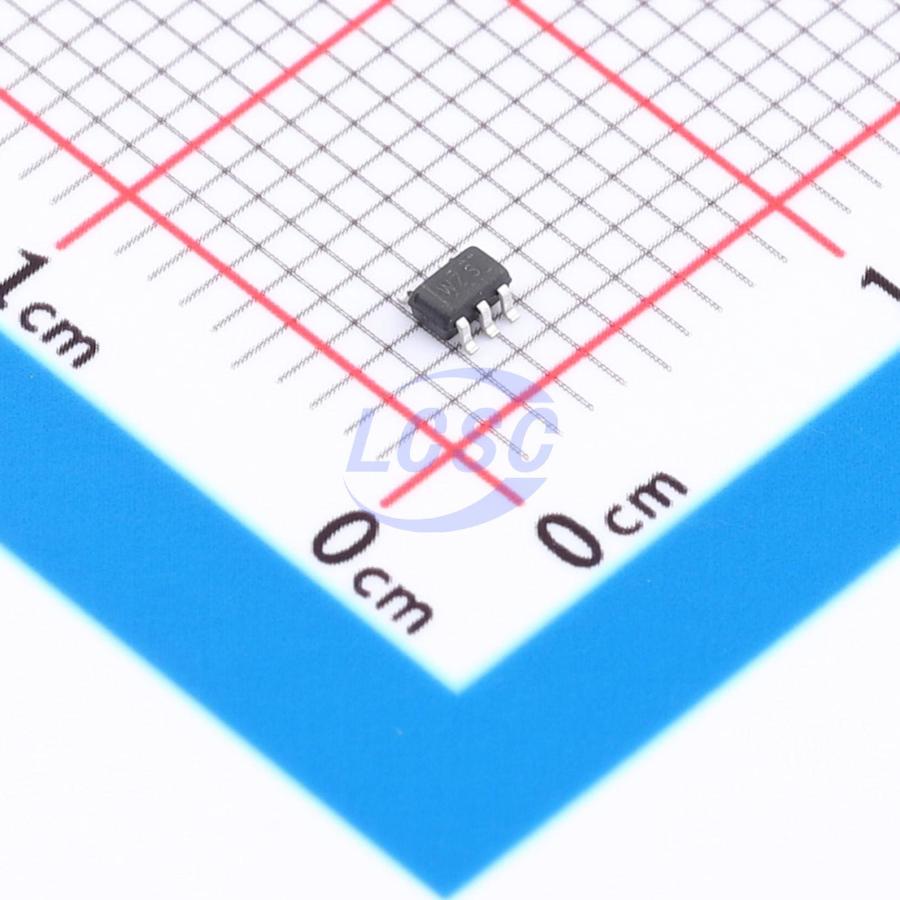

SN74LV1T125DCKR-TP
1 1 SOT-353 Translators, Level Shifters RoHS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LV1T125DCKR-TP
- Store part #
- C50314337
- Package / case
- SOT-353
- Category
- Translators, Level Shifters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,010 in stock
#C50314337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.03 | ₹100.30 |
| 100+ | ₹7.96 | ₹796.00 |
| 300+ | ₹6.92 | ₹2,076.00 |
| 3,000+ | ₹6.15 | ₹18,450.00 |
| 6,000+ | ₹5.53 | ₹33,180.00 |
| 9,000+ | ₹5.21 | ₹46,890.00 |
10 × ₹10.03
₹100.30
excl. GST
₹118.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LV1T125DCKR-TP
₹100.30 for 10 + GST
Specifications
- output type
- Tri-State
- Output Signal
- CMOS
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Channel Type
- Unidirectional
- Features
- Power-off protection;Output enable high-impedance
- Voltage - Supply
- 1.6V~5.5V;1.6V~5.5V
- Number of Circuits
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
SN74LV1T125DCKR-TP is a single-channel level-shifting buffer driver with 3-state output. The 3-state output is controlled by the output enable input — when OE is high, the output enters a high-impedance shutdown state. The output levels are referenced to the supply voltage, supporting CMOS logic levels of 1.8V, 2.5V, 3.3V, and 5.0V. The low-threshold input supports 1.8V input logic levels at VCC = 3.3V, enabling level up-translation from 1.8V to 3.3V. In addition, the 5V-tolerant input pins support level down-translation — for example, at VCC = 2.5V, 3.3V-to-2.5V output conversion can be achieved.
Applications
- AV receiver
- Embedded PC
- Solid-state drive
Key features
- Operating voltage range: 1.6V to 5.5V
- Low quiescent current: Icc = 10μA (max)
- Output drive capability: ±8mA (VCC = 5.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standard
- Human Body Model: 2000V (A114-A)
- Machine Model: 200V (A115-A)
- Charged Device Model: 1000V (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LV1T125GWH-TP#C50314220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,400 | ₹9.87 · 2,400 in stock | View |
 | 74LV1T08GW-TP#C42460230TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,780 | ₹8.41 · 3,780 in stock | View |
 | SN74LV1T34DCKR#C48543212TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,290 | ₹11.85 · 3,290 in stock | View |
