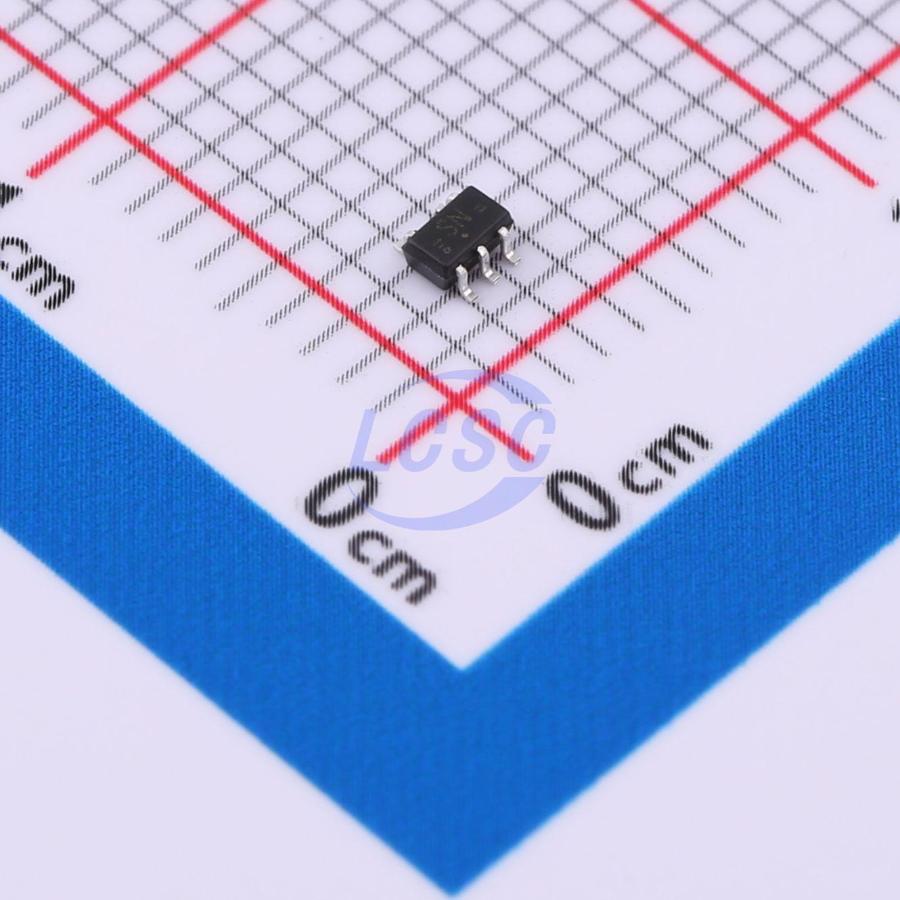

74LV1T125GWH

The 74LV1T125 is a single, level translating buffer/line driver with 3-state output. The low threshold inputs support 1.8 V input logic at VCC = 3.3 V and can be used in 1.8 V to 3.3 V level up translation. In addition, the 5 V tolerant input pins enable down translation (3.3 V to 2.5 V output at VCC = 2.5 Vg). The 3-state output is controlled by the output enable input (OE). A HIGH-level at OE causes the output to assume a high-impedance OFF-state. The output level is referenced to the supply voltage and supports 1.8 V, 2.5 V, 3.3 V and 5.0 V CMOS levels. The wide VCC range permits the generation of output levels to connect to controllers or processors.

Applications

• Portable applications
• PC and notebooks
• Industrial controller
• Telecom

Key features

• Single supply voltage translator at 1.8 V, 2.5 V, 3.3 V and 5.0 V
• Up translation: 1.2 V to 1.8 V at VCC = 1.8 V; 1.5 V to 2.5 V at VCC = 2.5 V; 1.8 V to 3.3 V at VCC = 3.3 V; 3.3 V to 5.0 V at VCC = 5.0 V
• Down translation: 3.3 V to 1.8 V at VCC = 1.8 V; 3.3 V to 2.5 V at VCC = 2.5 V; 5.0 V to 3.3 V at VCC = 3.3 V
• 5 V tolerant inputs
• Latch-up performance exceeds 250 mA per JESD 78 Class II
• ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
• Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
