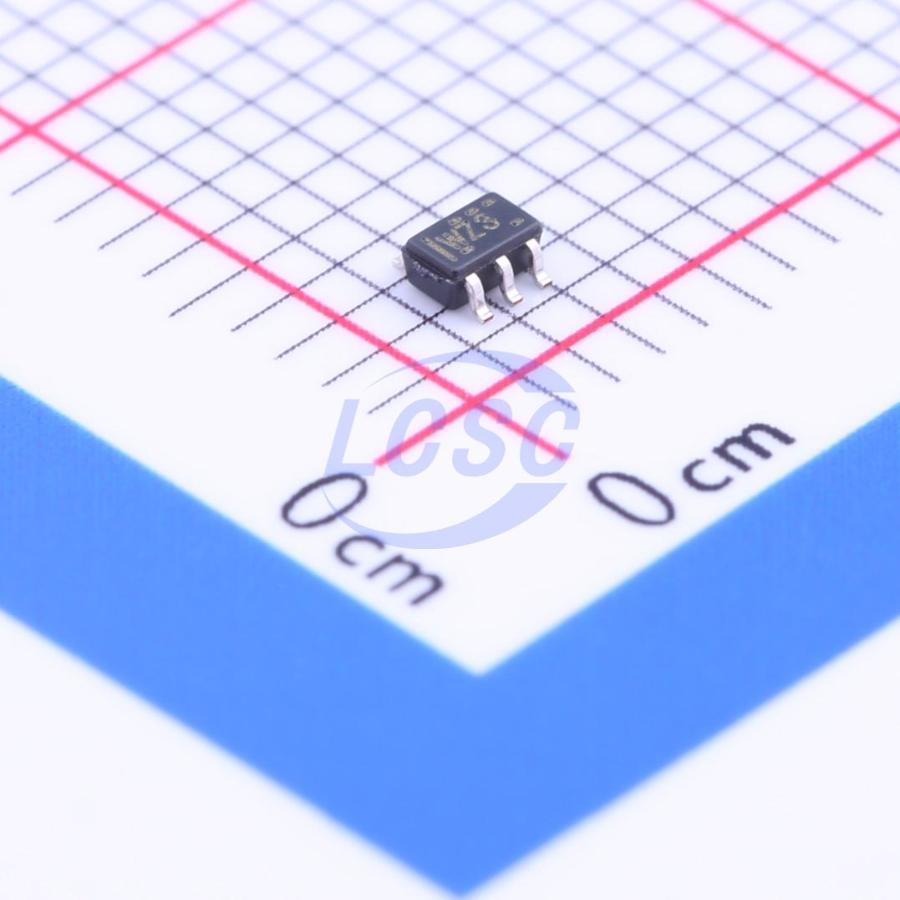

SN74LV1T125DCKR

1.6V~5.5V 1 1 5.5ns@5V,15pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS

SC-70-5ROHS3 CompliantActive

Single Power Supply Single Buffer Gate with 3-State Output CMOS Logic Level Shifter

Manufacturer: TI
Manufacturer part #: SN74LV1T125DCKR
Store part #: C75925
Package / case: SC-70-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,255 in stock

#C75925

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹23.26	₹116.30
50+	₹19.73	₹986.50
150+	₹17.95	₹2,692.50
500+	₹16.63	₹8,315.00
3,000+	₹14.67	₹44,010.00
6,000+	₹14.14	₹84,840.00

Quantity (min 5, multiples of 5)

5 × ₹23.26

₹116.30

excl. GST

₹137.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV1T125DCKR

₹116.30 for 5 + GST

Specifications

Function: Level shifting
Current - Output High(IOH): 8mA
Series: 74LV
Voltage - Supply: 1.6V~5.5V
Output Type: Tri-State
Current - Output Low(IOL): 8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 5.5ns@5V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

SN74LV1T125 is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V/2.5V/3.3V/5V CMOS levels. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V). The wide VCC range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors. The SN74LV1T125 is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Applications

Industrial controllers
Telecom
Portable applications
Servers
PC and notebooks
Automotive

Key features

Single-Supply Voltage Translator at 5.0/3.3/2.5/1.8V VCC Operating Range of 1.8V to 5.5V
1.2V to 1.8V at 1.8V VCC; 1.5V to 2.5V at 2.5V VCC; 1.8V to 3.3V at 3.3V VCC; 3.3V to 5.0V at 5.0V VCC
Down Translation: 3.3V to 1.8V at 1.8V VCC; 3.3V to 2.5V at 2.5V VCC; 5.0V to 3.3V at 3.3V VCC
Logic Output is Referenced to VCC
Output Drive: 8.0mA Output Drive at 5.0V; 7.0mA Output Drive at 3.3V; 3.0mA Output Drive at 1.8V
Characterized up to 50MHz at 3.3V VCC
2000-V Human-Body Model (A114-B, Class II)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
Supports Standard Logic Pinouts
