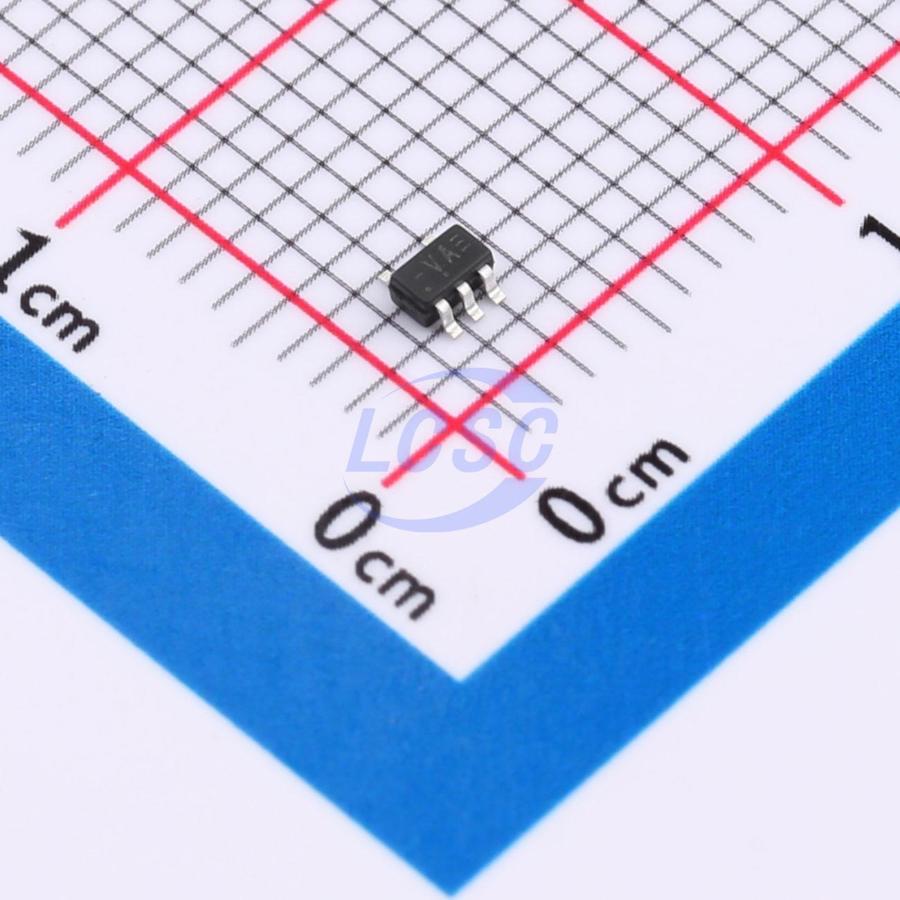

74LVC1G00GW
10uA 1.65V~5.5V 5.9ns@5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT NAND GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G00GW
- Store part #
- C19829645
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,220 in stock
#C19829645
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.16 | ₹51.60 |
| 100+ | ₹4.51 | ₹451.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 3,000+ | ₹3.94 | ₹11,820.00 |
| 6,000+ | ₹3.74 | ₹22,440.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹5.16
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G00GW
₹51.60 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 5.9ns@5V,15pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
74LVC1G00 is a 2-input NAND gate device which provides the Function v = A(overline) · B(overline) or Y = A(overline) + B(overline) in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate from 1.65V to 5.5V
- Inputs accept voltages to 5.5V
- High Noise Immunity
- Low power dissipation
- ESD Protection Exceeds JESD22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC1G00DCKR#C19829626TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 4,340 | ₹6.34 · 4,340 in stock | View |
 | TP74LVC1G132C5#C46472792TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,370 | ₹8.93 · 2,370 in stock | View |
 | 74LVC1G00SE-TP#C52098139TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,890 | ₹5.89 · 2,890 in stock | View |
 | SN74LVC1G132DCKR-TP#C46472791TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,755 | ₹10.48 · 2,755 in stock | View |
 | NC7SZ00P5X#C19829604TECH PUBLIC · SC-70-5 | TECH PUBLIC | SC-70-5 | 7,170 | ₹6.34 · 7,170 in stock | View |
