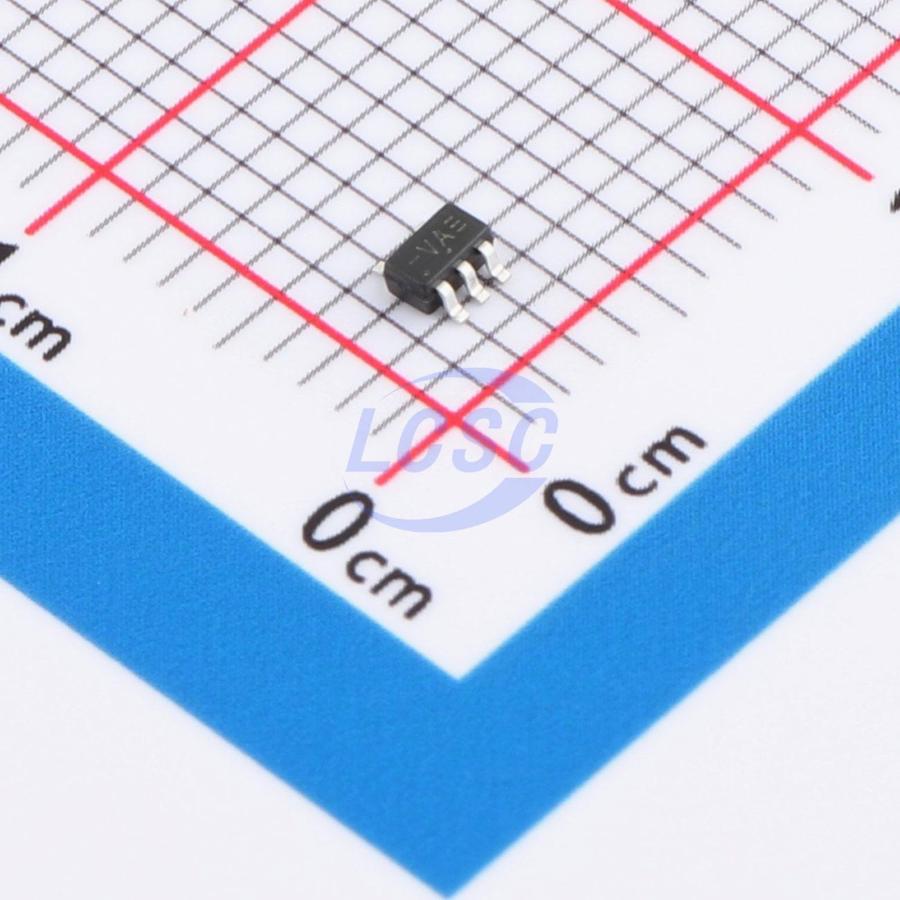

74LVC1G00SE-TP
1.65V~5.5V 4.4ns@5V,15pF 10uA SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G00SE-TP
- Store part #
- C52098139
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,880 in stock
#C52098139
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.63 | ₹463.00 |
| 300+ | ₹4.00 | ₹1,200.00 |
| 3,000+ | ₹3.53 | ₹10,590.00 |
| 6,000+ | ₹3.15 | ₹18,900.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G00SE-TP
₹58.90 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 4.4ns@5V,15pF
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74LVC1G00 is a 2-input NAND gate that provides the function Y = ĀB̄ or Y = Ā + B̄ in positive logic. The device features a power-off protection circuit to prevent damage during power-down conditions.
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
Key features
- Operating voltage range 1.65V to 5.5V
- Inputs accept voltages up to 5.5V
- High noise immunity
- Low power consumption
- ESD protection exceeds JESD 22 - 2000V Human Body Model (A114-A) - 1000V Charged Device Model (C101)
- Available in SOT23-5 package
- Available in SOT353 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7SZ00P5X#C19829604TECH PUBLIC · SC-70-5 | TECH PUBLIC | SC-70-5 | 7,170 | ₹6.34 · 7,170 in stock | View |
 | TP74LVC1G132C5#C46472792TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,370 | ₹8.93 · 2,370 in stock | View |
 | SN74LVC1G00DCKR#C19829626TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,330 | ₹6.34 · 3,330 in stock | View |
 | SN74LVC1G132DCKR-TP#C46472791TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,755 | ₹10.48 · 2,755 in stock | View |
 | TC7SZ00FU-TP#C54195028TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.34 · 3,000 in stock | View |
