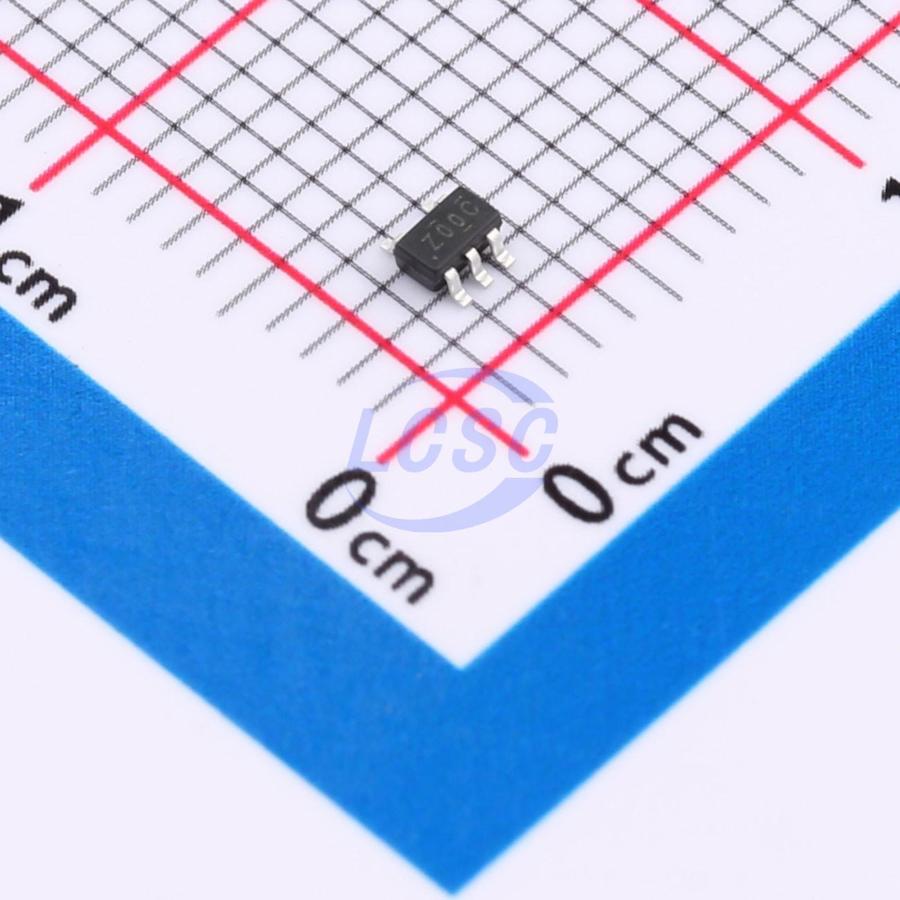

NC7SZ00P5X

This single 2-input positive-NAND gate is designed for 1.65-V to 5.5-V VCC operation. The NC7SZ00 performs the Boolean function Y = (A × B)(overline) or Y = A(overline) + B(overline) in positive logic. The CMOS device has high output drive while maintaining low static power dissipation over a broad Vcc operating range. The NC7SZ00 device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm × 0.8 mm

Applications

• Audio Dock:Portable
• Blu-ray Players and Home Theaters
• Embedded PC
• MP3 Player/Recorder (Portable Audio)
• Personal Digital Assistant (PDA)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drive (SSD): Client and Enterprise
• TV: LCD/Digital and High-Definition (HDTV)
• Tablet: Enterprise
• Video Analytics: Server

Key features

• Supports 5-V Vcc Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to Vcc
• Max tpd of 3.8 ns at 3.3 V
• Low Power Consumption, 10 μA Max Icc
• ±24 mA Output Drive at 3.3 V
• loff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Wide operating voltage range.
• Operates from 1.65 V to 5.5 V
• Allows down voltage translation.
• Inputs accept voltages to 5.5 V
• loff feature allows voltages on the inputs and outputs, when Vcc is 0 V.
