TECH PUBLIC

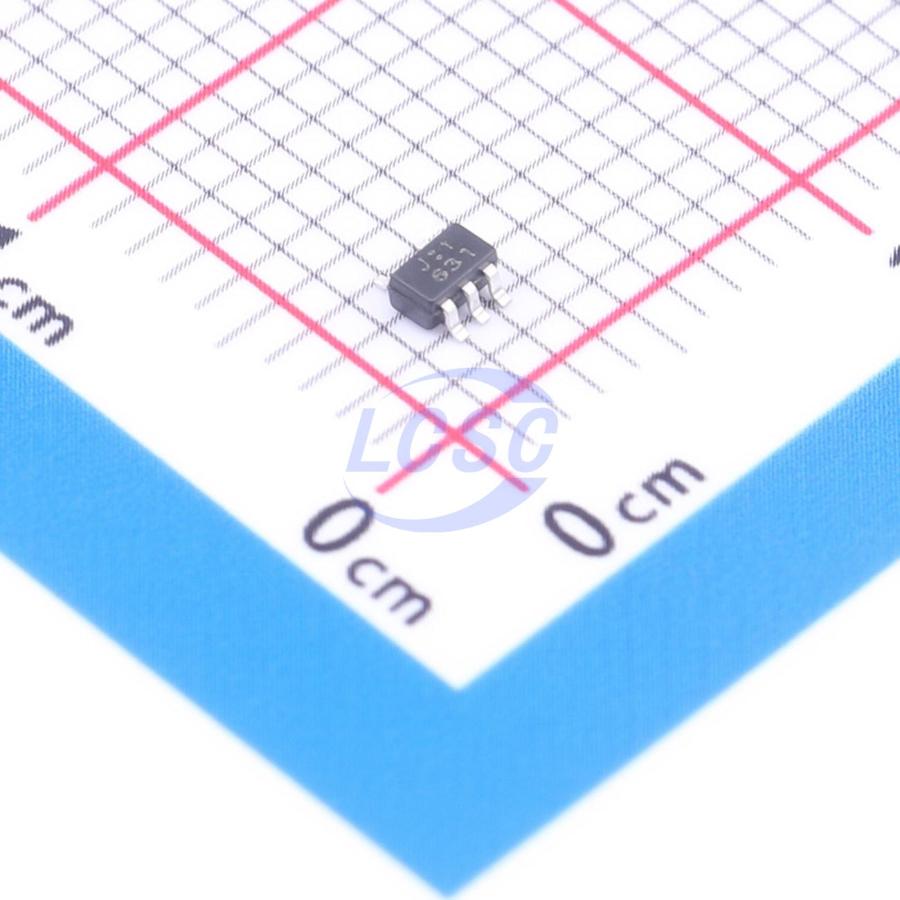

TC7SZ00FU-TP

Schmitt trigger 1.65V~5.5V 7.2ns@1.8V,15pF 10uA SOT-353 Gates and Inverters

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TC7SZ00FU-TP
Store part #: C54195028
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C54195028

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
10+	₹6.34	₹63.40
100+	₹5.00	₹500.00
300+	₹4.33	₹1,299.00
3,000+	₹3.82	₹11,460.00
6,000+	₹3.43	₹20,580.00
9,000+	₹3.23	₹29,070.00

Quantity (min 10, multiples of 10)

10 × ₹6.34

₹63.40

excl. GST

₹74.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7SZ00FU-TP

₹63.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 7.2ns@1.8V,15pF
Output Logic Level - Low: 450mV;300mV;400mV;550mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

TC7SZ00 is a single 2-input NAND gate. The device is designed for operation with Vcc ranging from 1.65V to 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. The TC7SZ00 performs the Boolean function Y = A × B or Y = A + B in positive logic. This CMOS device provides high output drive capability while maintaining low quiescent power consumption over a wide Vcc operating range. The TC7SZ00 is offered in SOT23-5 and SOT353 packages.

Applications

Active Noise Cancellation (ANC)
Blood Pressure Monitor
Embedded PC
SSD: Client and Enterprise
TV: LCD/Digital and HDTV
Tablet: Enterprise
Video Analytics: Server
Wireless Headsets, Keyboards and Mice
Power Supply: Telecom/Server AC/DC Controller

Key features

Wide supply voltage range: 1.65V to 5.5V
Maximum propagation delay of 3.8ns at Vcc = 3.3V
Low power consumption, maximum Icc of 10μA
Output drive of ±24mA at Vcc = 3.3V
Latch-up performance exceeds 100mA per JESD 78 Class II
ESD protection exceeds JESD 22
Human Body Model 2000V (A114-A)
Charged Device Model 1000V (C101)
Operating temperature range: -40°C to 125°C
Available packages: SOT23-5 and SOT353
