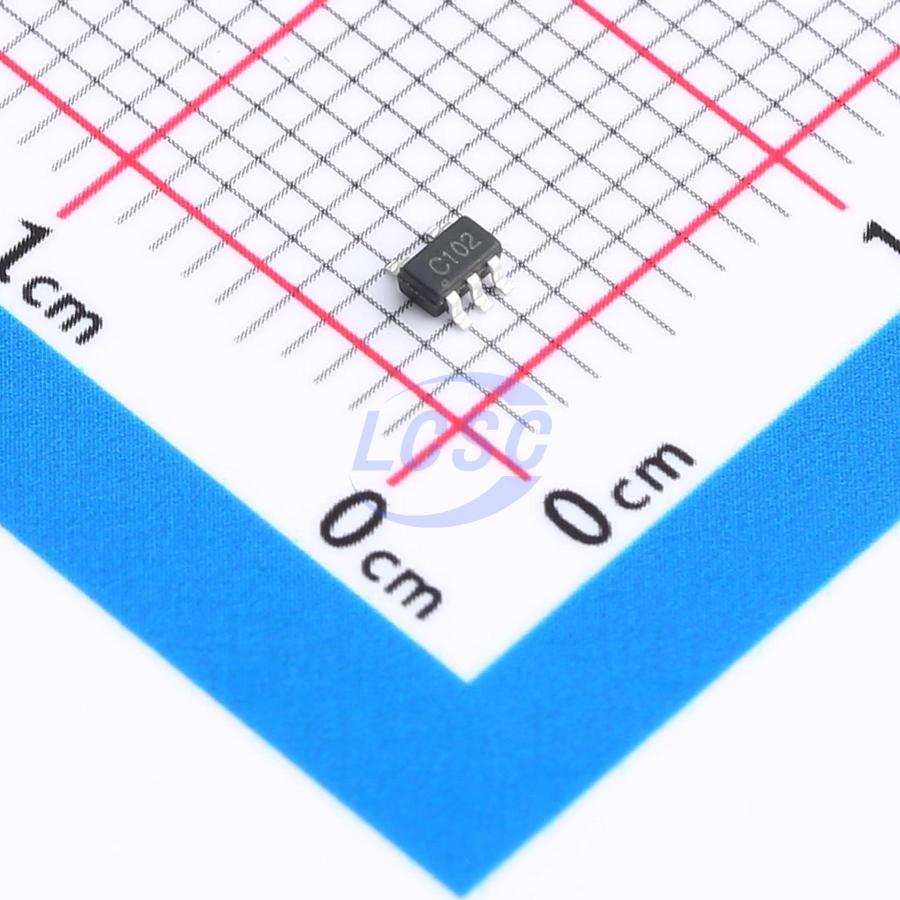

TP74LVC1G02C5
10uA 1.65V~5.5V 4ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
SINGLE 2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G02C5
- Store part #
- C42460126
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C42460126
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.55 | ₹75.50 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 1,000+ | ₹4.59 | ₹4,590.00 |
| 5,000+ | ₹4.11 | ₹20,550.00 |
| 10,000+ | ₹3.88 | ₹38,800.00 |
10 × ₹7.55
₹75.50
excl. GST
₹89.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G02C5
₹75.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Logic Family
- 74LVC
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The TP74LVC1G02 is a 2-input NOR gate Device which provides the Function Y = (A + B) (overline) in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- ±24 mA Output Drive (VCC = 3.0 V)
- High Noise Immunity
- Power Down Protection
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
