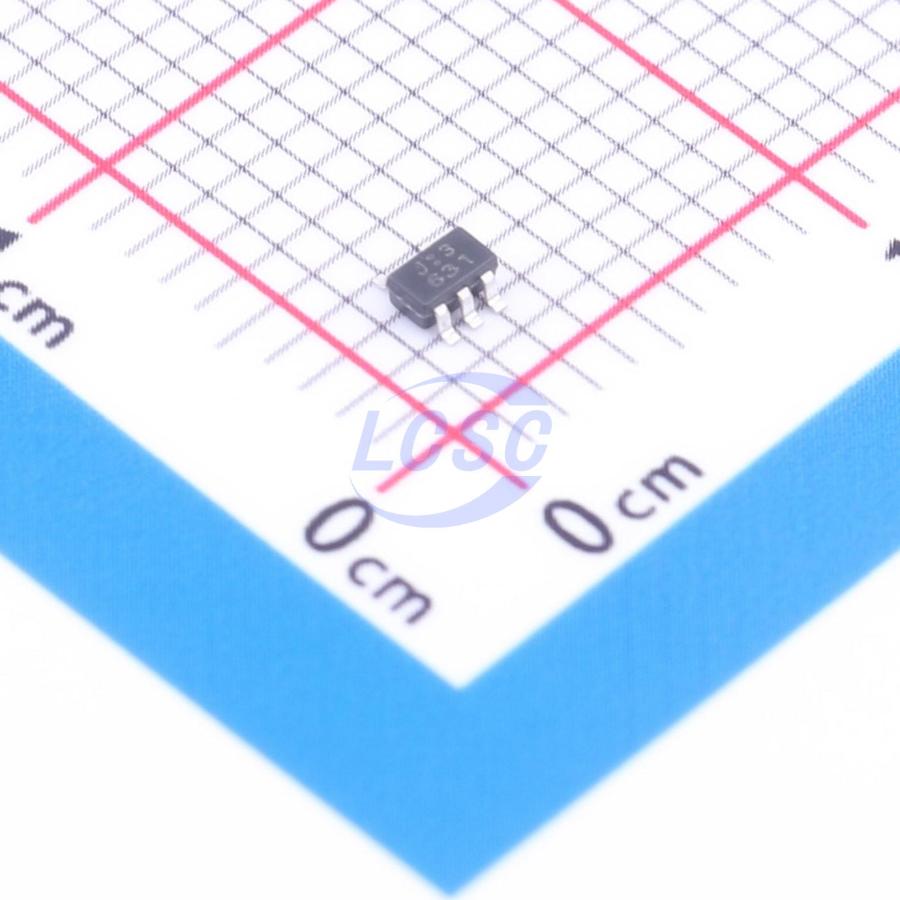

TC7SZ02FU-TP

The TC7SZ02 is a single 2-input NOR gate. The device is designed for operation with Vcc from 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SZ02 performs the Boolean function Y = $\overline{(A + B)}$ or Y = $\overline{A}$ × $\overline{B}$ in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SZ02 is offered in SOT23-5 and SOT353 packages.

Applications

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay TpD of 3.6 ns at Vcc = 3.3 V
• Low power consumption, maximum Icc of 10 μA
• Output drive current of ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• HBM ESD protection 2000 V (A114-A)
• CDM ESD protection 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353

Key features

• Wide supply voltage range: 1.65 V to 5.5 V
• Maximum propagation delay TpD of 3.6 ns at Vcc = 3.3 V
• Low power consumption, maximum Icc of 10 μA
• Output drive current ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class I
• ESD protection exceeds JESD 22
• HBM ESD protection 2000 V (A114-A)
• CDM ESD protection 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
