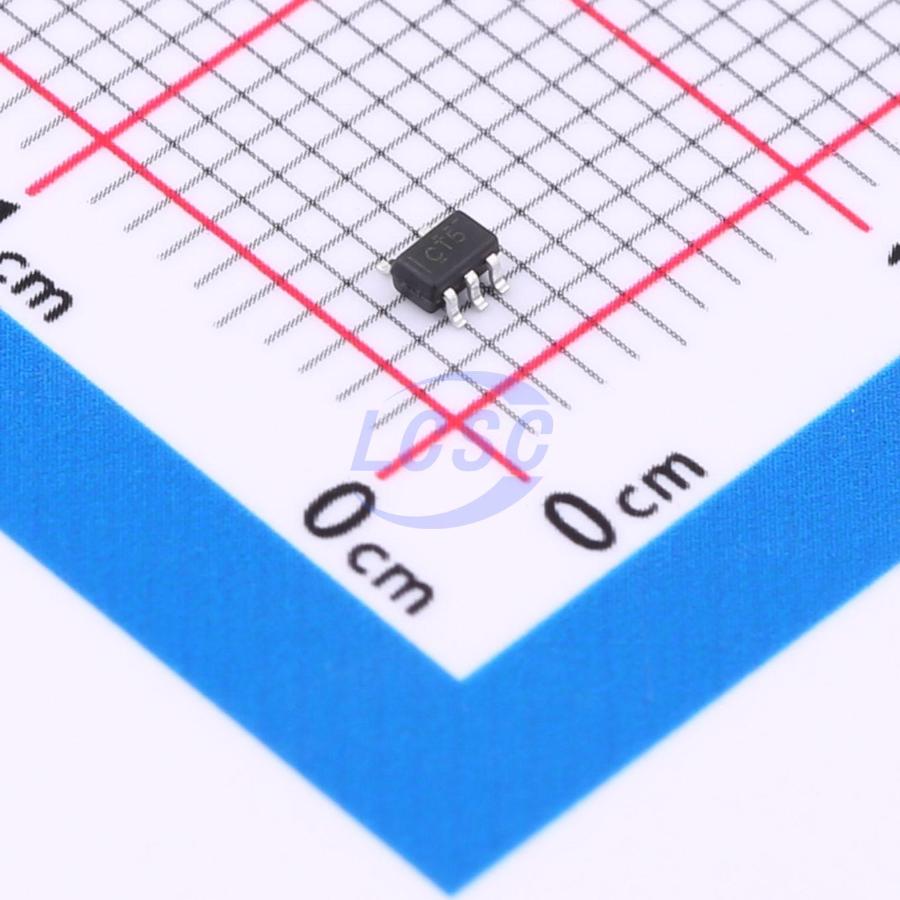

74LVC1G06CT05ARCQ
1.65V~5.5V 1 1 SC-70-5 Buffers, Drivers, Receivers, Transceivers
SC-70-5RoHSActive
Single Inverter Buffer/Driver With Open-Drain Output
- Manufacturer
- GR
- Manufacturer part #
- 74LVC1G06CT05ARCQ
- Store part #
- C46527067
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C46527067
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.17 | ₹83.40 |
| 200+ | ₹3.25 | ₹650.00 |
| 600+ | ₹2.74 | ₹1,644.00 |
| 3,000+ | ₹2.43 | ₹7,290.00 |
| 9,000+ | ₹2.17 | ₹19,530.00 |
| 21,000+ | ₹2.02 | ₹42,420.00 |
20 × ₹4.17
₹83.40
excl. GST
₹98.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G06CT05ARCQ
₹83.40 for 20 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.022 g
Overview
This single-inverter buffer/driver is designed for VCC operation from 1.65V to 5.5V. The 74LVC1G06 device features open-drain outputs that can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. Maximum sink current is 32mA.
Key features
- 5V Vcc operation supported
- Inputs and open-drain outputs accept up to 5.5V
- Low power consumption, max Icc of 10μA
- Open-drain devices with ±24mA output drive capability at 3.3V
- Ioff supports partial power-down mode operation and back-drive protection
