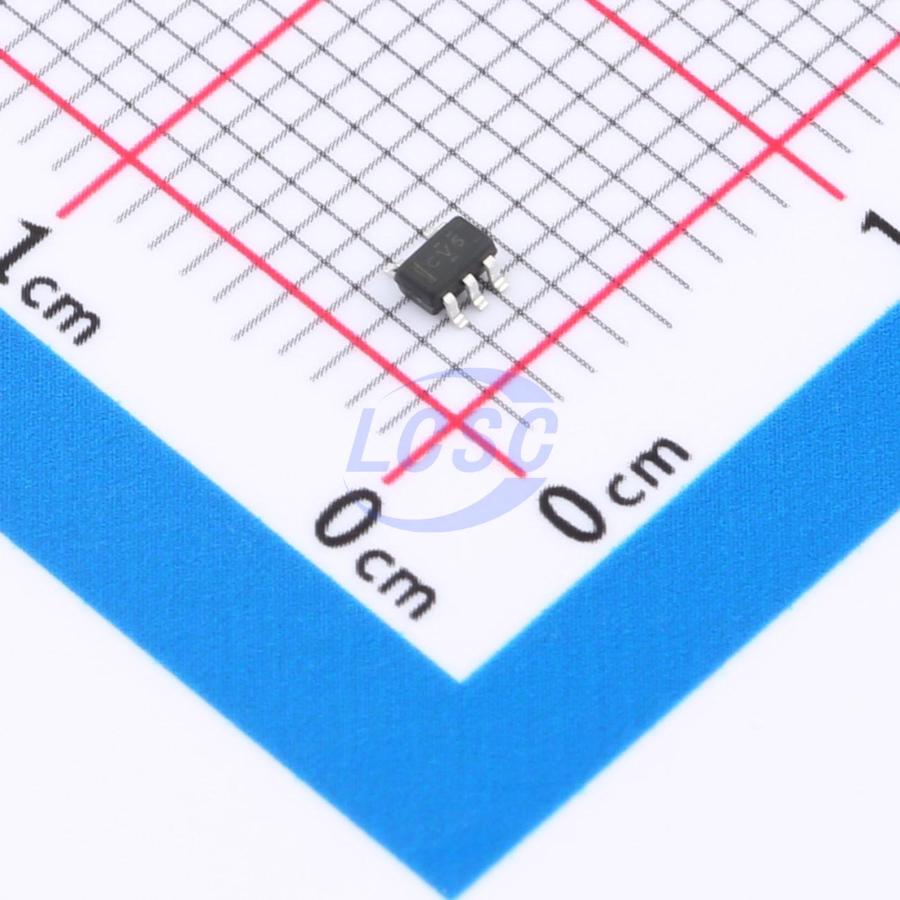

74LVC1G07CT05ARCQ
1.65V~5.5V 1 1 SC-70-5 Buffers, Drivers, Receivers, Transceivers
SC-70-5RoHSActive
Single Buffer/Driver With Open-Drain Output
- Manufacturer
- GR
- Manufacturer part #
- 74LVC1G07CT05ARCQ
- Store part #
- C48391415
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C48391415
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.22 | ₹84.40 |
| 200+ | ₹3.28 | ₹656.00 |
| 600+ | ₹2.77 | ₹1,662.00 |
| 3,000+ | ₹2.46 | ₹7,380.00 |
| 9,000+ | ₹2.20 | ₹19,800.00 |
| 21,000+ | ₹2.05 | ₹43,050.00 |
20 × ₹4.22
₹84.40
excl. GST
₹99.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07CT05ARCQ
₹84.40 for 20 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- 0℃~+70℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.036 g
Overview
This single buffer/driver is designed for VCC operating voltages from 1.65 V to 5.5 V. The 74LVC1G07 device features an open-drain output that can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. Its maximum sink current is 32 mA.
Key features
- 5 V VCC operation supported
- Inputs and open-drain outputs accept up to 5.5 V
- Voltage translation up or down
- Low power consumption, max ICC of 10 μA
- ±24 mA output drive capability at 3.3 V
- Ioff feature supports hot insertion, partial power-down, and back-drive protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G06CT05ARCQ#C46527067GR · SC-70-5 | GR | SC-70-5 | 2,740 | ₹4.17 · 2,740 in stock | View |
 | 74LVC1G125CT05ARCQ#C46527076GR · SC-70-5 | GR | SC-70-5 | 620 | ₹5.00 · 620 in stock | View |
 | 74LVC1G34CT05ARCQ#C48391419GR · SC-70-5 | GR | SC-70-5 | 1,180 | ₹4.22 · 1,180 in stock | View |
 | 74LVC1G17CT05ARCQ#C48391420GR · SC-70-5 | GR | SC-70-5 | 2,080 | ₹5.31 · 2,080 in stock | View |
