JSMSEMIDatasheet (PDF)

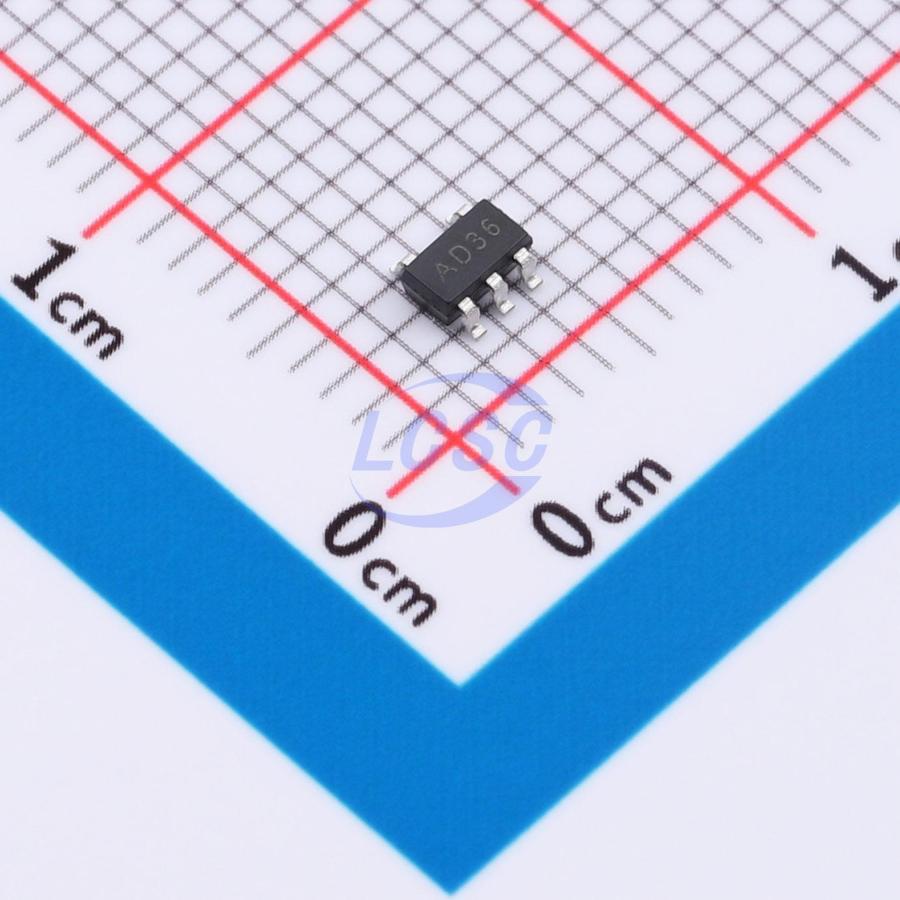

74LVC1G07GV-JSM
1.65V~5.5V 1 1 9.5ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G07GV-JSM
- Store part #
- C53114438
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C53114438
Stock & price checked 23 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.29 | ₹92.90 |
| 100+ | ₹7.40 | ₹740.00 |
| 300+ | ₹6.46 | ₹1,938.00 |
| 3,000+ | ₹5.74 | ₹17,220.00 |
| 6,000+ | ₹5.19 | ₹31,140.00 |
| 9,000+ | ₹4.90 | ₹44,100.00 |
10 × ₹9.29
₹92.90
excl. GST
₹109.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07GV-JSM
₹92.90 for 10 + GST
Specifications
- Function
- Level shifting
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 9.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.044 g
Overview
The 74LVC1G07GV-JSM provides a non-inverting buffer function. The device output is open-drain, which can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The input can be driven by 3.3V or 5V devices, allowing the device to be used in mixed 3.3V and 5V environments.
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V-tolerant inputs for easy interface with 5V logic
- Output drive capability: -24mA (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C to +125°C
- Package options: SOT23-5/SOT353/DFN4/SOT553
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G125GV,125-JSM#C53436274JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 2,870 | ₹7.41 · 2,870 in stock | View |
 | 74LVC1G126GV-JSM#C53114294JSMSEMI · SOT-753 | JSMSEMI | SOT-753 | 5,620 | ₹10.00 · 5,620 in stock | View |
