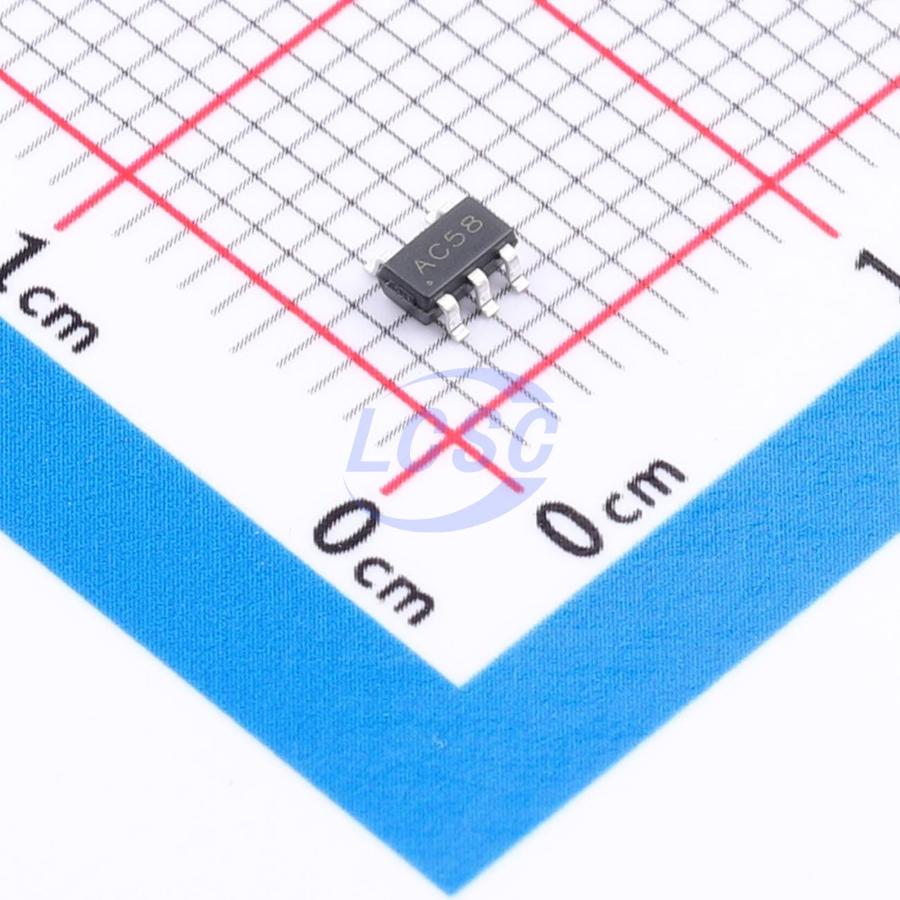

74LVC1G125GV,125-JSM
1.65V~5.5V 1 1 10.5ns@5.5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74LVC1G125GV,125-JSM
- Store part #
- C53436274
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C53436274
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.90 | ₹590.00 |
| 300+ | ₹5.13 | ₹1,539.00 |
| 3,000+ | ₹4.56 | ₹13,680.00 |
| 6,000+ | ₹4.11 | ₹24,660.00 |
| 9,000+ | ₹3.89 | ₹35,010.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G125GV,125-JSM
₹74.10 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Propagation Delay
- 10.5ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74LVC1G125 is a single buffer/line driver with 3-state output. The 3-state output is controlled by the output enable input (OE); when OE is driven HIGH, the output enters a high-impedance state. The inputs are compatible with 3.3V or 5V logic levels, allowing the device to be used in mixed 3.3V/5V voltage environments.
Key features
- Supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive (VCC = 3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C ~ +125°C
- Package: SOT-23-5/SOT-353/XSON6
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G126GV-JSM#C53114294JSMSEMI · SOT-753 | JSMSEMI | SOT-753 | 5,670 | ₹10.00 · 5,670 in stock | View |
 | 74LVC1G07GV-JSM#C53114438JSMSEMI · SOT-23-5 | JSMSEMI | SOT-23-5 | 2,970 | ₹9.29 · 2,970 in stock | View |
