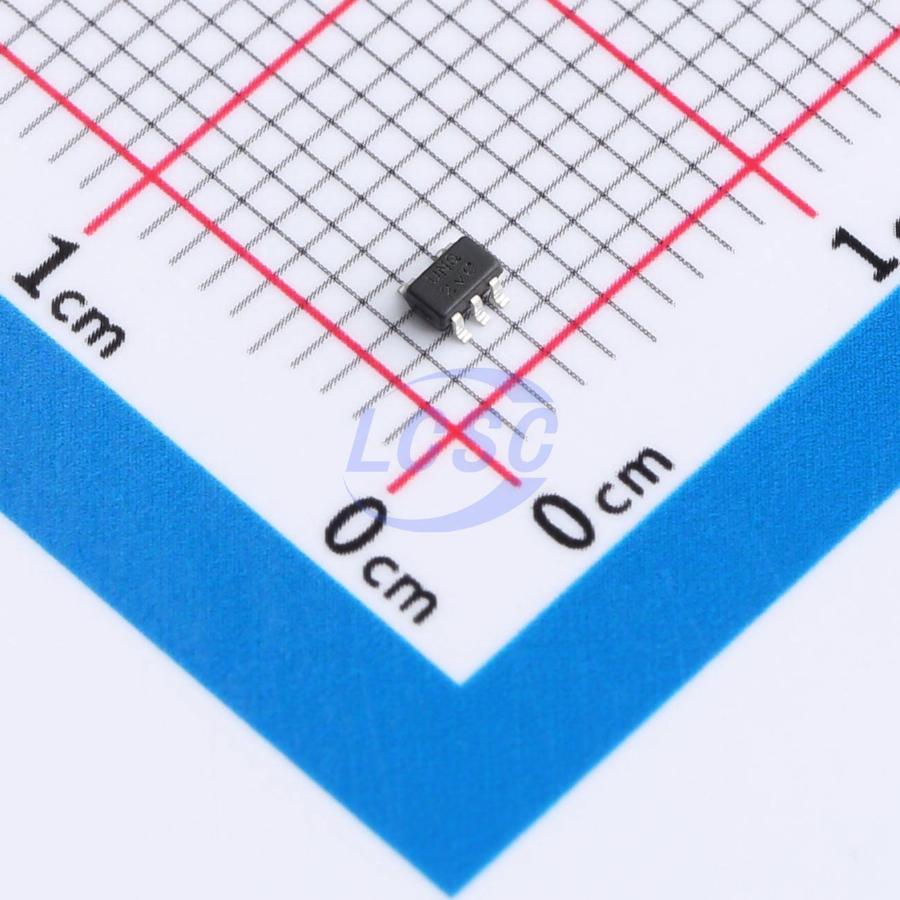

74LVC1G07QSE-7

The 74LVC1G07Q is an automotive-compliant, single buffer with an open-drain output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The open-drain output can be connected to other open drain outputs to implement active-low wiredOR or active-high wired-AND functions. The maximum sink current is 32mA at 5V.

Applications

• Voltage Level Shifting
• General Purpose Logic
• Power Down Signal Isolation
• Wide Array of Products such as:
• Automotive applications within Grade 1 Temperature Range
• Industrial Computing/Controls/Automation
• High Reliability Networking/Communications
• Industrial/Agricultural Equipment

Key features

• Grade 1 Ambient Temperature Operation: -40°C to +125°C
• Wide Supply Voltage Range from 1.65V to 5.5V
• 24mA Sink Current at 3.3V
• CMOS Low Power Consumption
• IOFF Supports Partial-Power-Down Mode Operation
• Inputs Accept up to 5.5V Regardless of VCC Level
• ESD Protection Tested per AEC-Q100
• Exceeds 2000V Human Body Model (AEC-Q100-002)
• Exceeds 1000V Charged Device Model (AEC-Q100-011)
• Latch-Up Exceeds 100mA (AEC-Q100-004)
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• The 74LVC1G07Q is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
