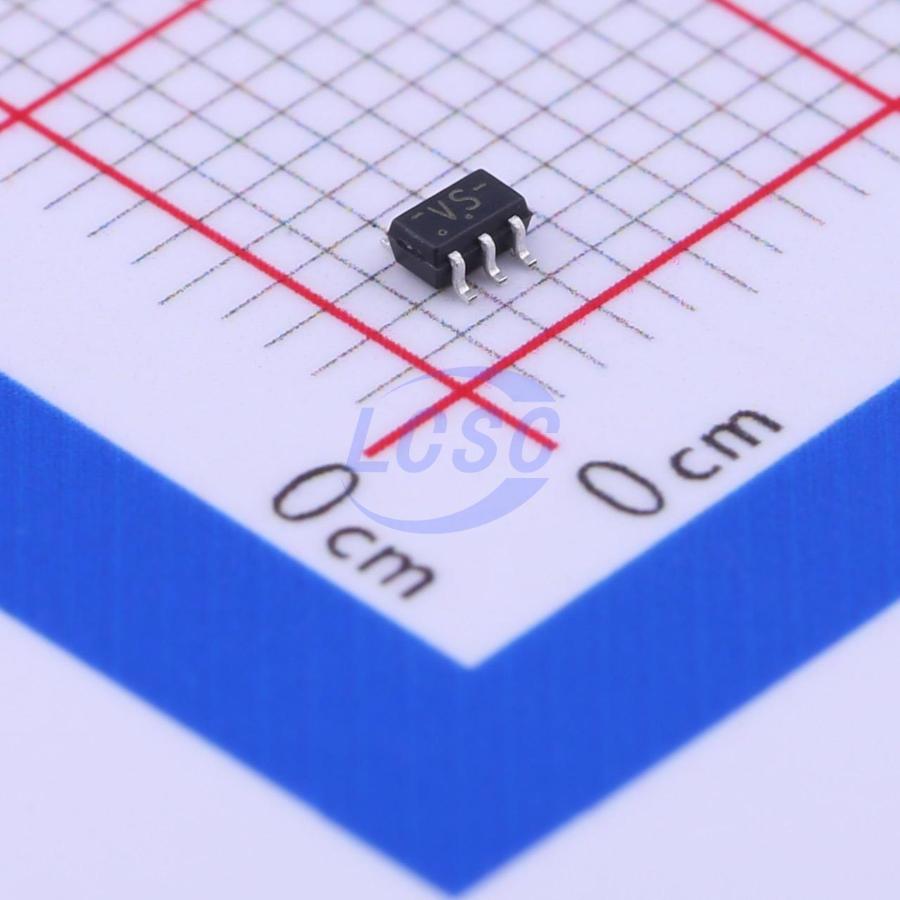

74LVC1G07GW,125
Schmitt trigger 1.65V~5.5V 1 1 1.6ns@5V,50pF TSSOP-5 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-5ROHS3 CompliantActive
Buffer with open-drain output
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC1G07GW,125
- Store part #
- C282345
- Package / case
- TSSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,045 in stock
#C282345
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.79 | ₹58.95 |
| 50+ | ₹9.19 | ₹459.50 |
| 150+ | ₹7.91 | ₹1,186.50 |
| 500+ | ₹6.93 | ₹3,465.00 |
| 3,000+ | ₹6.11 | ₹18,330.00 |
| 6,000+ | ₹5.72 | ₹34,320.00 |
5 × ₹11.79
₹58.95
excl. GST
₹69.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07GW,125
₹58.95 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Power-off isolation;Level shifting
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 1.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The 74LVC1G07 is a single buffer with open-drain output. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power consumption
- IOFF circuitry provides partial Power-down mode operation
- -24 mA output drive (VCC = 3.0 V)
- Latch-up performance exceeds 250 mA
- Direct interface with TTL levels
- Complies with JEDEC standard: JESD8 - 7 (1.65 V to 1.95 V), JESD8 - 5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V), JESD36 (4.5 V to 5.5 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G07QSE-7#C2675596DIODES · SOT-353 | DIODES | SOT-353 | 2,110 | ₹19.41 · 2,110 in stock | View |
 | 74LVC1G07GW#C52953350MDD(Microdiode Semiconductor) · SOT-353 | MDD(Microdiode Semiconductor) | SOT-353 | 2,250 | ₹9.50 · 2,250 in stock | View |
 | SN74LVC1G07DCK3#C2675591TI · SC-70-5 | TI | SC-70-5 | 970 | ₹33.43 · 970 in stock | View |
 | SN74LVC1G07DCKRE4#C3756687TI · SC-70-5 | TI | SC-70-5 | 11 | ₹167.19 · 11 in stock | View |
 | U74LVC1G07G-AL5-R#C7464692UTC · SOT-353 | UTC | SOT-353 | 1,920 | ₹7.51 · 1,920 in stock | View |
