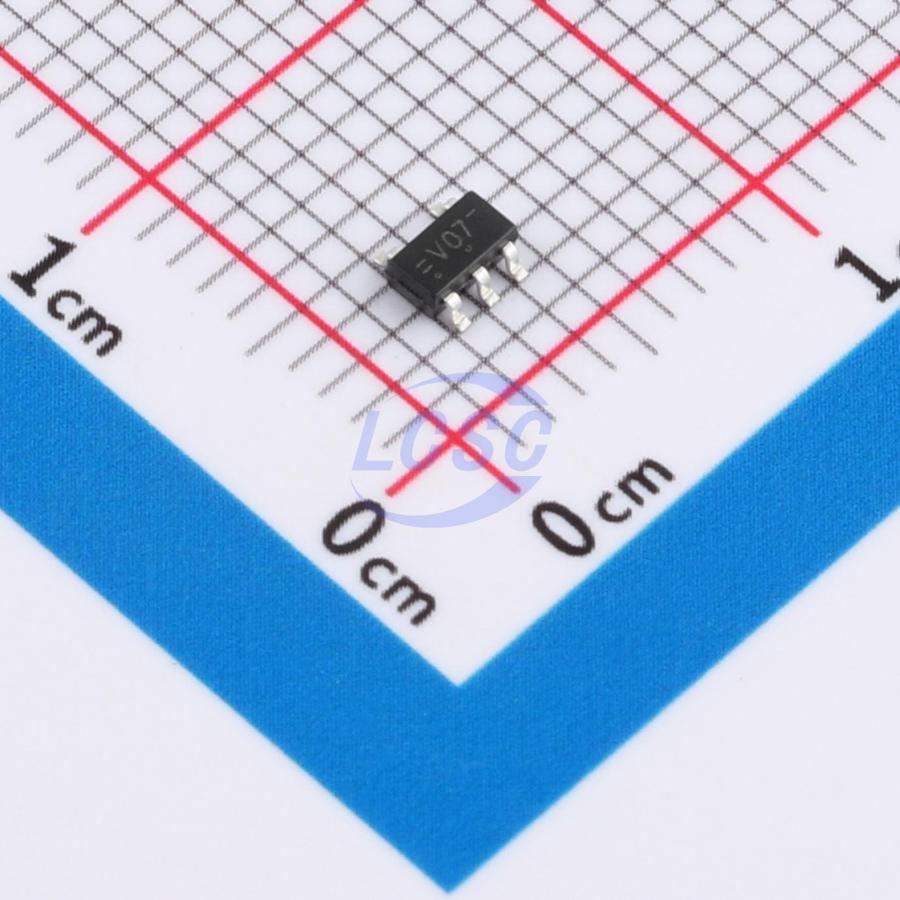

74LVC1G07W5-TP
1.65V~5.5V 1 1 8ns@3.3V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G07W5-TP
- Store part #
- C52098148
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C52098148
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G07W5-TP
₹58.50 for 10 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 8ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
74LVC1G07 is a single buffer/driver with open-drain output. The device features a power-off protection circuit to prevent damage when power is removed.
Applications
- Voltage level translation
- General-purpose logic circuits
- Power-off signal isolation
- PCs, network equipment, laptops, netbooks, PDAs
- Tablets, e-readers
- Computer peripherals, HDDs, CD/DVD drives
- TVs, DVD players, DVRs, set-top boxes
- Mobile phones, personal navigation/GPS devices
- MP3 players, cameras, camcorders
Key features
- Input and open-drain output tolerant up to 5.5V
- Low supply current: Icc = 10μA (max)
- Output drive capability ±24mA (VCC=3.3V)
- Power-off protection
- ESD protection exceeds JESD 22 standard
- HBM (A114-A) rated at 2000V
- CDM (C101) rated at 1000V
- Available in SOT23-5 package
- Available in SOT353 package
